461 × 228 × 778 mm, providing a compact and space-efficient solution.
Utilizes Controller Area Network (CAN) for reliable and efficient communication with Power Conversion Systems (PCS).
Battery capacity of 14.3 kWh, expandable and adaptable with a 1P16S configuration.

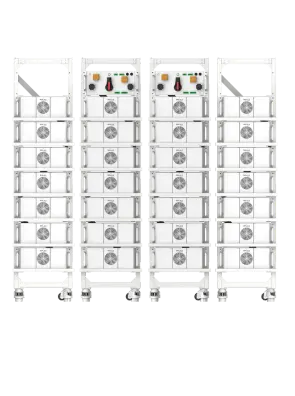

Available in wall-mounted and floor-mounted configurations to suit different installation needs.
Utilizes 280Ah Lithium Iron Phosphate (LFP) batteries for enhanced safety, longevity, and efficiency.
Operates in temperatures from -20°C to 53°C and relative humidity levels of 0-95%, with a maximum operating altitude of 3000 meters.
Weight of 115 kg, charge/discharge rate of ≤ 0.5C, and ingress protection rating of IP20 ensure durability and reliable performance.
The HYBRID C&I ESS CABINET Pack TB-HR140 is an advanced energy storage solution that combines high capacity and solid performance. This unit features a lithium iron phosphate (LFP) battery with a capacity of 14.3 kWh, configured in a 1P16S arrangement. It operates at a nominal voltage of 51.2 V and supports a voltage range of 40 V to 58.4 V. Weighing 115 kg, this system can efficiently handle charge and discharge rates of up to 0.5 °C. Its compact dimensions of 461 mm x 228 mm x 778 mm allow for flexible installation options.
The TB-HR140 is designed to operate over a wide operating temperature range of -20°C to 53°C, supporting relative humidity levels from 0% to 95%. It is suitable for use at altitudes up to 3000 meters and offers IP20 rated ingress protection. Communication with the power conversion system (PCS) is facilitated via a CAN interface, ensuring seamless integration and monitoring. This combination of features makes the TB-HR140 an ideal choice for commercial and industrial energy storage applications, offering reliability and efficiency in various environmental conditions.
| Battery type | LFP 280Ah |
| Battery capacity [kWh] | 14.3 |
| Battery Configuration | 1P16S |
| Rated Battery Voltage [V] | 51.2 |
| Battery voltage range [V] | 40-58.4 |
| Weight [kg] | 115 |
| Charge / Discharge Rate | ≤ 0.5C |
| Dimensions (WxHxD) [mm] | 461 × 228 × 778 |
| Operating temperature range [°C] | -20 ~ 53 |
| Relative humidity (non-condensing) [%] | 0 ~ 95 |
| Max. operating altitude [m] | 3000 |
| Ingress protection | IP20 |
| Communication to PCS | CAN |
