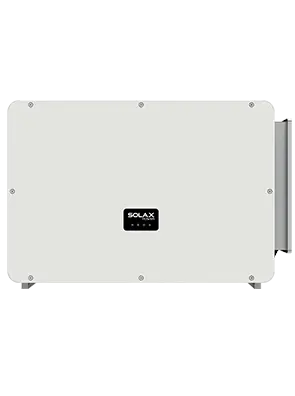

string-inverter-x3-forth-3

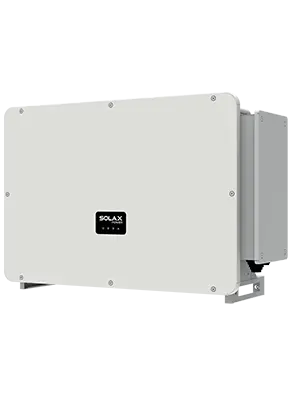

string-inverter-x3-forth-1

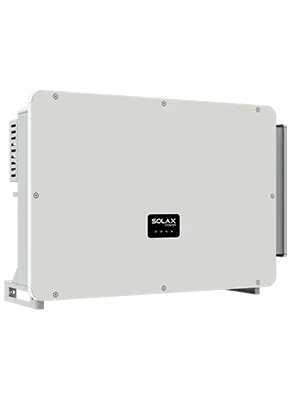

string-inverter-x3-forth-2

X3 FORTH PLUS

X3 FORTH PLUS

75kW / 120kW / 125kW 136kW / 150kW

Assured Safety

  • IP66 rating

  • Remote settings and upgrades

  • 24-hour monitoring

  • Automatic tripping DC switch


Flexible Adaptability

  • Optional arc-fault circuit interrupter (AFCI)

  • SPD Type II (Type I+II optional)

  • -25°C to +60°C (derating above 50°C)

  • 6 MPPTs, 4 strings per MPPT for precise power



High Efficiency

  • Up to 99% efficiency

  • 200% PV oversizing

  • 180~1000V, up to 65A per MPPT

  • Reliable up to 5000m altitude








Intelligent Design

  • Fan self-cleaning

  • Night-time SVG for voltage regulation

  • AC terminal over temperature detection

  • Optional PLC, LED/LCD/APP for information





Why X3 FORTH PLUS

Discover the SolaX X3 FORTH PLUS solar inverter, engineered for superior performance and reliability in various applications. With up to 99% efficiency and the ability to handle 200% PV oversized inputs, it ensures optimal energy conversion and utilization. The 180~1000V range and up to 65A per MPPT support diverse solar panel configurations, while its operation up to 5000m altitude makes it versatile for different geographical locations. Safety is paramount with an IP66 rating, 24-hour monitoring, and automatic tripping DC switch. The intelligent design includes fan self-cleaning, night-time SVG for stable voltage, and AC terminal over-temperature detection. Plus, with optional PLC, LED/LCD/APP for information, and flexible adaptability features like AFCI and SPD Type II, the X3 FORTH PLUS is a smart choice for your solar energy needs.



X3-FTH-120K-P
X3-FTH-125K-P
X3-FTH-136K-P
X3-FIH-150K-P
PV INPUT
Max. recommended PV array power180.0 kWp
Max. PV input voltage111100 V
Nominal PV input voltage580 V / 600 V
Operating voltage range200 ~ 1000 V
MPPT voltage range22180 ~ 1000 V
Start-up voltage200 V
No. of MPP trackers / Strings6/4
Max. input current per MPPT65 A
Max. input short circuit current82 A
AC OUTPUT
Rated output power120 kW
Rated output current181.8 A / 174 A
Max. output apparent power132 kVA
Max. output continuous current200.6 A @ 380 V
Max. short circuit current500 A
Nominal AC voltage3 / (N) / PE, 220 / 380 V, 230 / 400 V
Nominal AC frequency50 Hz / 60 Hz
AC frequency range33~ 1 (0.8 lagging to 0.8 leading)
THDI (rated power)< 3%


PV INPUT
Max. recommended PV array power187.5 kWp
Max. PV input voltage111100 V
Nominal PV input voltage580 V / 600 V
Operating voltage range200 ~ 1000 V
MPPT voltage range22180 ~ 1000 V
Start-up voltage200 V
No. of MPP trackers / Strings6/4
Max. input current per MPPT65 A
Max. input short circuit current82 A
AC OUTPUT
Rated output power125 kW
Rated output current189.4 A / 181.2 A
Max. output apparent power137.5 kVA
Max. output continuous current209 A @ 380 V
Max. short circuit current500 A
Nominal AC voltage3 / (N) / PE, 220 / 380 V, 230 / 400 V
Nominal AC frequency50 Hz / 60 Hz
AC frequency range33~ 1 (0.8 lagging to 0.8 leading)
THDI (rated power)< 3%


PV INPUT
Max. recommended PV array power204 kWp
Max. PV input voltage111100 V
Nominal PV input voltage580 V / 600 V
Operating voltage range200 ~ 1000 V
MPPT voltage range22180 ~ 1000 V
Start-up voltage200 V
No. of MPP trackers / Strings6/4
Max. input current per MPPT65 A
Max. input short circuit current82 A
AC OUTPUT
Rated output power136 kW
Rated output current206.6 A / 196.3 A
Max. output apparent power150 kVA
Max. output continuous current228 A @ 380 V
Max. short circuit current500 A
Nominal AC voltage3 / (N) / PE, 220 / 380 V, 230 / 400 V
Nominal AC frequency50 Hz / 60 Hz
AC frequency range33~ 1 (0.8 lagging to 0.8 leading)
THDI (rated power)< 3%


PV INPUT
Max. recommended PV array power225 kWp
Max. PV input voltage111100 V
Nominal PV input voltage580 V / 600 V
Operating voltage range200 ~ 1000 V
MPPT voltage range22180 ~ 1000 V
Start-up voltage200 V
No. of MPP trackers / Strings6/4
Max. input current per MPPT65 A
Max. input short circuit current82 A
AC OUTPUT
Rated output power150 kW
Rated output current227.3 A / 217.4 A
Max. output apparent power165 kVA
Max. output continuous current250.7 A @ 380 V
Max. short circuit current500 A
Nominal AC voltage3 / (N) / PE, 220 / 380 V, 230 / 400 V
Nominal AC frequency50 Hz / 60 Hz
AC frequency range33~ 1 (0.8 lagging to 0.8 leading)
THDI (rated power)< 3%
