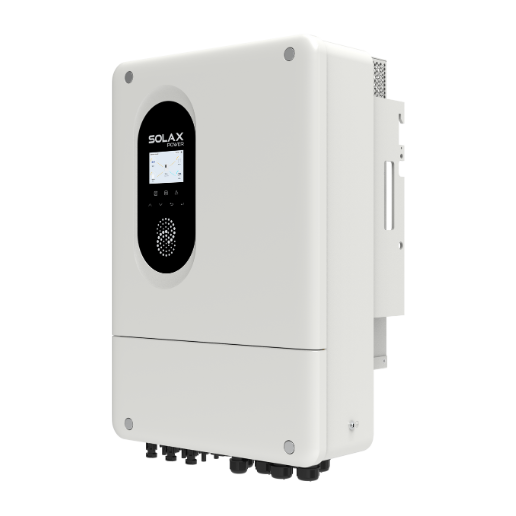

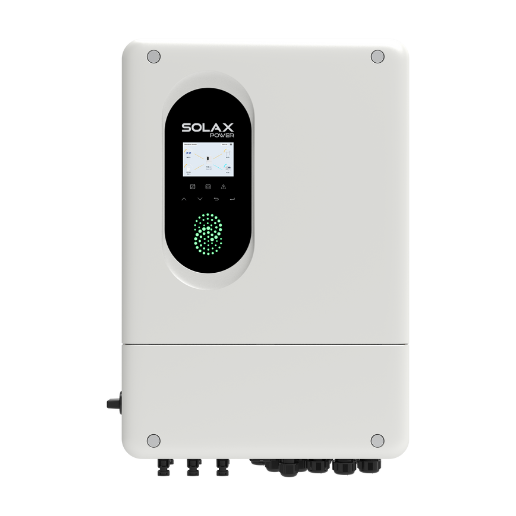

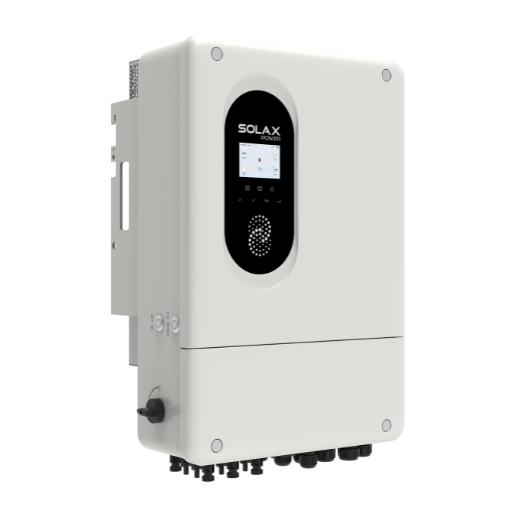

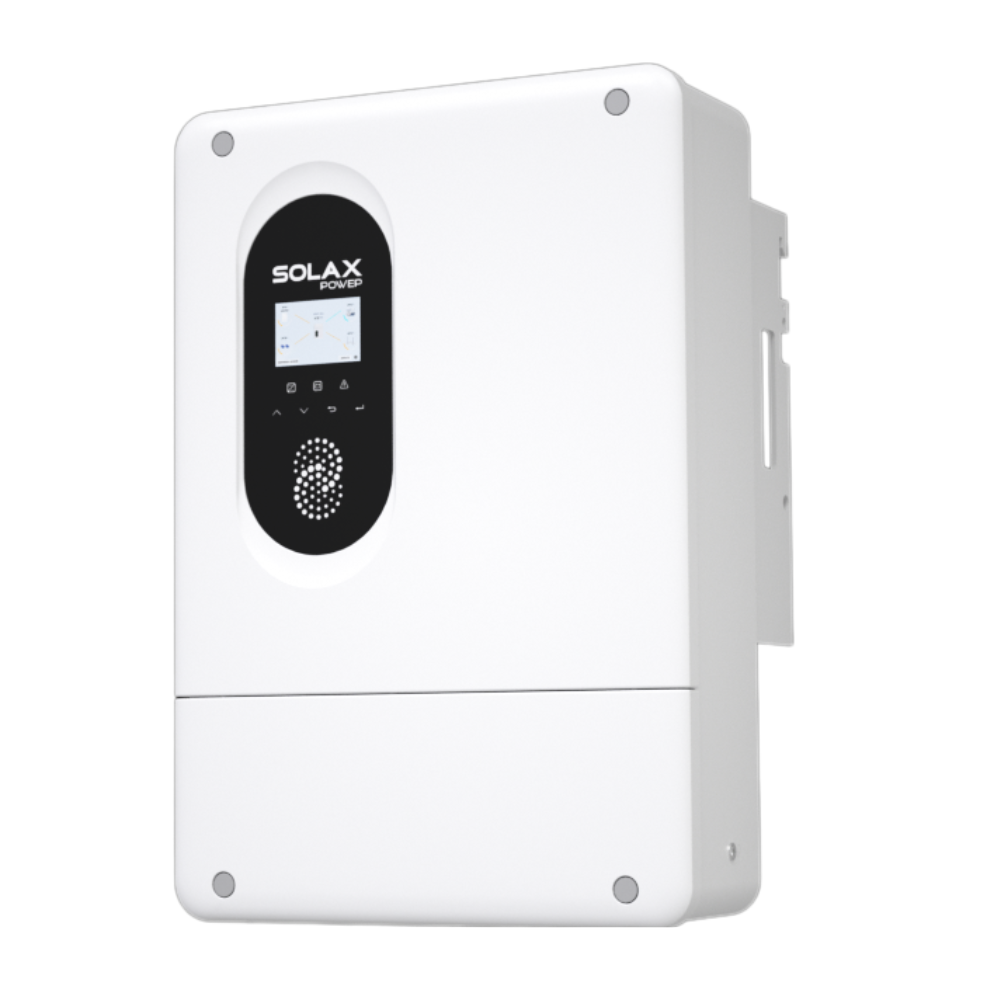

Hybrid Inverter

X1-Lite-LV

8kW / 10kW / 12kW

The X1-Lite LV inverter features 200% PV oversizing capability, and seamless integration with multiple battery types. Supporting both on-grid and off-grid applications with up to 3 pcs in parallel, it is ideal for residential and microgrid setups seeking reliable solar energy solutions.

Watch Video
Data Download

Product Advantage

Engineered for high-demand environments, the X1-Lite LV delivers up to 110% AC output and supports a powerful 200% peak EPS power for 10 seconds. Featuring a maximum current of 32A input per MPPT for high-power solar panels, it ensures faster energy storage.

Smart Management

Smart loads management
Global MPP scan for optimal energy harvest* (Feature to be upgraded in the future)

Flexible Adaptability

Max. 3pcs parallel for on-grid and off-grid
Microgrid and generator function for versatile operations* (Feature to be upgraded in the future)

High Performance

Max. 3 MPPTs for versatile application scenarios
200% oversizing and 200% PV input power
Max. 32 A PV input per MPPT
Low start-up voltage for higher energy harvest

Assured Reliability

Battery terminal temperature detection
IP65 ingress protection
Type II SPD on AC&DC side
AFCI protection (optional)* (Feature to be upgraded in the future)
Up to 200% EPS output for 10s
Single unit UPS-level switchover time < 6 ms

Product Parameters

X1-Lite-8.0-LV
X1-Lite-10.0-LV
X1-Lite-12.0-LV

X1-Lite-8.0-LV
- PV INPUT

  Max. recommended PV array power 16kWp
  MPPT voltage range 50 ~ 550 V
  No. of MPP. trackers / strings per MPPT 2/(2/2)
  Max. input current per MPPT 32 A/32 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 8000 W
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power
  16000 VA
  2 times of rated power, 10s
  Switchover time <6 ms
- GENERAL

  Dimensions (W /H / D) 462 × 651 × 280 mm
  Net Weight 38.5 kg
X1-Lite-10.0-LV
- PV INPUT

  Max. recommended PV array power 20kWp
  MPPT voltage range 50 ~ 550 V
  No. of MPP. trackers / strings per MPPT 2/(2/2)
  Max. input current per MPPT 32 A/32 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 10000 W
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power
  20000 VA
  2 times of rated power, 10s
  Switchover time <6 ms
- GENERAL

  Dimensions (W /H / D) 462 × 651 × 280 mm
  Net Weight 38.5 kg
X1-Lite-12.0-LV
- PV INPUT

  Max. recommended PV array power 24kWp
  MPPT voltage range 50 ~ 550 V
  No. of MPP. trackers / strings per MPPT 3/(2/2/2)
  Max. input current per MPPT 32 A/32 A/32A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 12000 W
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power
  24000 VA
  2 times of rated power, 10s
  Switchover time <6 ms
- GENERAL

  Dimensions (W /H / D) 462 × 651 × 280 mm
  Net Weight 38.5 kg
