Residential Energy Storage Inverters
Ideal for solar energy storage, home battery backup, and off-grid power solutions, it supports sustainable living and maximizes solar efficiency.
Introduction

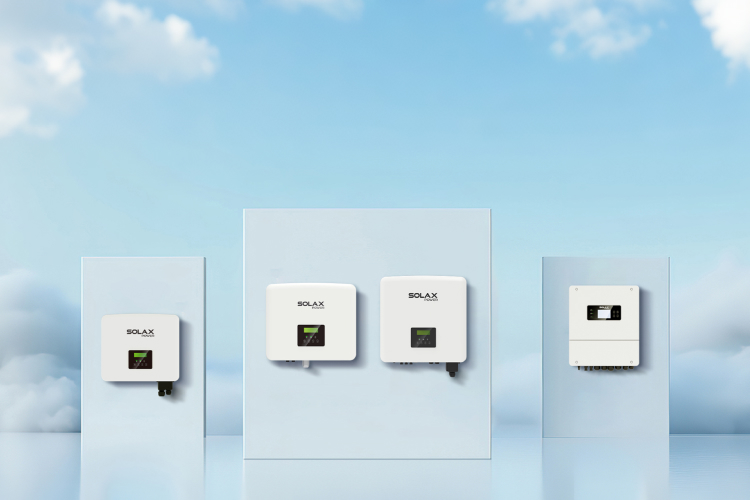

SolaX Residential Energy Storage Inverter converts solar energy into usable AC power while managing battery storage for optimal efficiency. With high efficiency, smart monitoring, and robust protection, our hybrid inverter ensures reliable performance.
-
High-Efficiency Energy Conversion
Maximize your solar power potential with a triple MPPT system, ensuring optimal energy harvesting even for complex rooftops. Each MPPT supports up to 20A current, enhancing system performance and efficiency. The energy inverter also features dual battery ports, allowing up to 25A charging per port, ensuring faster charging and greater storage capacity.
-
Up to 3
MPP Trackers
-
Up to 20A
MPPT Current per Tracker
-
2 Battery Ports
Up to 25A x 2 Charging Current
-
-
Reliable Backup Power & Safety
Stay powered during outages with 200% EPS output, providing extra emergency power when needed most. The inverter features an ultra-fast UPS switching time (<10ms) for seamless transitions, ensuring uninterrupted power for critical loads. Up to IP66-rated enclosure and SPD II surge protection, it withstands harsh environments and extreme weather.
-
Up to 200%
EPS Output Power
-
<10ms
UPS Switching Time
-
Up to IP66
Weatherproof Protection
-
-
Smart Energy Management & Versatile Applications
Optimize energy usage with intelligent load management, dynamically allocating power to priority appliances and reducing electricity costs. The hybrid inverter supports multiple communication interfaces, ensuring seamless integration with heat pumps, energy meters, and CTs.
-
Solar | Wind | Diesel | EV Charging | V2X
Multi-Energy Integration
Solar + Battery + EV Charging (PV + Storage + EV)
Solar + Battery + Wind Power (PV + Storage + Wind)
Solar + Battery + Diesel Generator (PV + Storage + Diesel)
Vehicle-to-Everything (V2X) Technology – Enabling EV-to-grid power exchange.
-
Product Parameters
-
X3-HYB-4.0-P-
PV INPUT
Max. recommended PV array power 8 kWp MPPT voltage range 110~950V No. of MPP. trackers / strings per MPPT 2(1/1) Max. input current per MPPT 20A/20 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 4000 W Rated AC voltage 3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 560x503x210 mm Net Weight 38 kg
-
-
X3-HYB-5.0-P
-
PV INPUT
Max. recommended PV array power 10 kWp MPPT voltage range 110~950V No. of MPP. trackers / strings per MPPT 2(1/1) Max. input current per MPPT 20A/20 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 5000 W (AS 4777 4999 W)
Rated AC voltage 3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 560x503x210 mm Net Weight 38 kg
-
-
X3-HYB-6.0-P
-
PV INPUT
Max. recommended PV array power 12 kWp MPPT voltage range 110~950V No. of MPP. trackers / strings per MPPT 2(1/1) Max. input current per MPPT 20A/20 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 6000 W Rated AC voltage 3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 560x503x210 mm Net Weight 38 kg
-
-
X3-HYB-8.0-P
-
PV INPUT
Max. recommended PV array power 16 kWp MPPT voltage range 110~950V No. of MPP. trackers / strings per MPPT 3(1/1/1) Max. input current per MPPT 20A / 20A / 20A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 8000 W Rated AC voltage 3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 560x503x210 mm Net Weight 38 kg
-
-
X3-HYB-10.0-P
-
PV INPUT
Max. recommended PV array power 20 kWp MPPT voltage range 110~950V No. of MPP. trackers / strings per MPPT 3(1/1/1) Max. input current per MPPT 20A/20A/20A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 10000 W
(AS 4777 9999 W)
Rated AC voltage 3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 560x503x210 mm Net Weight 38 kg
-
-
X3-HYB-12.0-P
-
PV INPUT
Max. recommended PV array power 24 kWp MPPT voltage range 110~950V No. of MPP. trackers / strings per MPPT 3(1/1/1) Max. input current per MPPT 20A/20A/20A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 12000 W Rated AC voltage 3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 560x503x210 mm Net Weight 38 kg
-
-
X3-HYB-15.0-P
-
PV INPUT
Max. recommended PV array power 30 kWp MPPT voltage range 110~950V No. of MPP. trackers / strings per MPPT 3(1/1/1) Max. input current per MPPT 20A/20A/20A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 15000 W
(4S 4777 14999 W)
Rated AC voltage 3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 560x503x210 mm Net Weight 38 kg
-
