C&I ESS

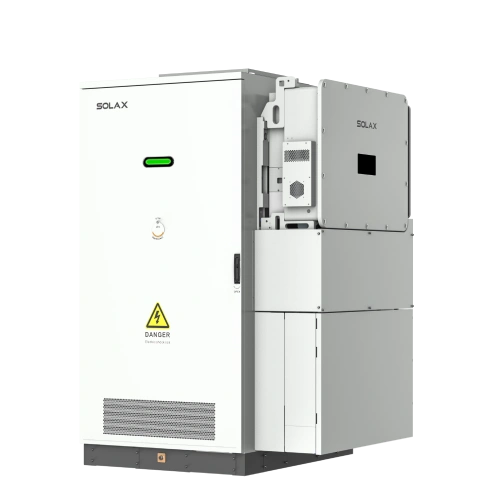

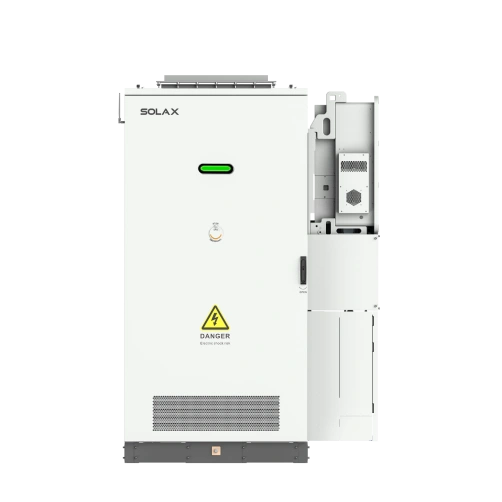

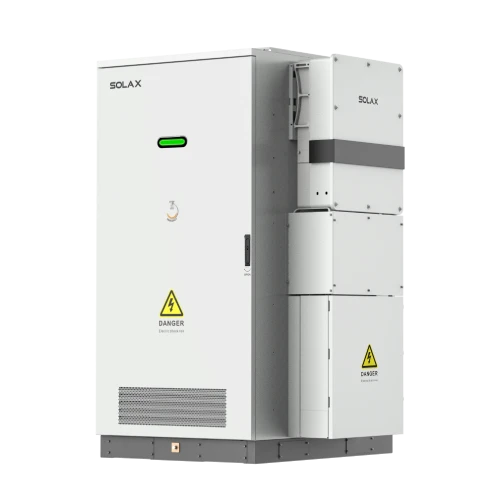

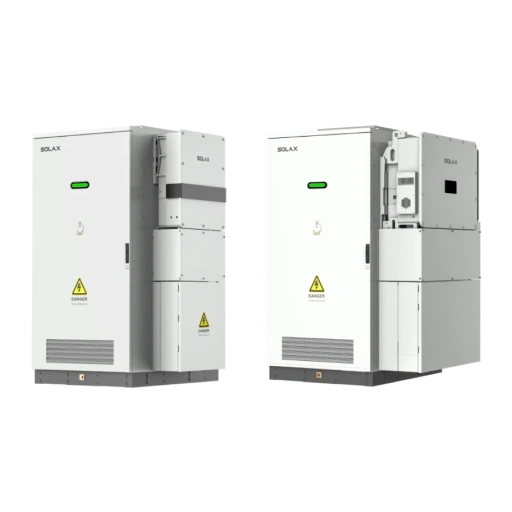

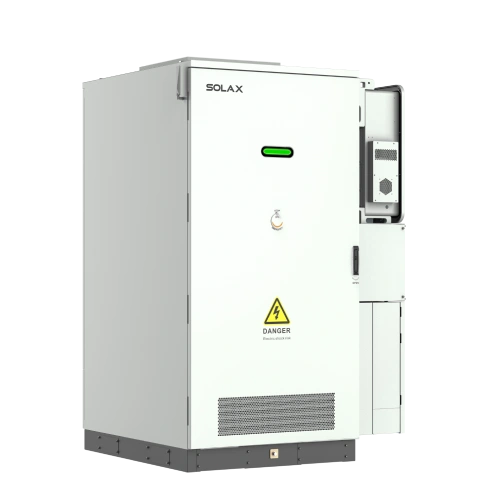

ESS-AELIO 208/261kWh
-
100kW 208kWh / 130kW 261kWh
Available in 100kW and 130kW power ratings paired with 208kWh or 261kWh capacity options, it is engineered for commercial and industrial deployment. Its modular architecture ensures seamless scalability, adapting effortlessly to evolving energy demands with flexibility.
Product Advantage
Powered by SolaX's fully integrated 3S technology (BMS, EMS & PCS), ESS-AELIO delivers intelligent energy management. Comprehensive multi-level safety protection, real-time cell monitoring, and support for VPP and grid services ensure stable operation throughout the system lifecycle.
Flexible & Scalable
130kW max continuous output
Supports up to 10 parallel systems
Supports multi-battery cabinet expansion,catering to 2-8 hour long-duration energy storage needs
Optional GEN interface for precise control
Assured Safety
Real-time cell monitoring, 7-day early short-circuit warning
PACK, Cluster, PCS, and AC-side 4-level overcurrent protection
Multi-layer redundant fire safety design for ultimate thermal safety
Stable and Efficient
Fully self-developed 3S (BMS, EMS & PCS) for seamless & stable operation
High-efficiency system with RTE up to 90%
Smart liquid cooling & AI-driven BMS extend lifespan by up to 2 years
0ms Seamless Switching*
*Switching cabinet required for >3 units
Smart O&M
Integrated with SolaXCloud, adaptive strategies for up to 12% higher returns
Compatible with VPP, FCAS and other grid auxiliary services
Unmanned site management with one-click upgrades to reduce O&M costs
Product Parameters
-
AEL208-2A-
PV INPUT
Max.recommended PV array power
150 kWp
MPPT voltage range
160 - 850 d.c. V
No. of MPP trackers / Strings per MPP tracker
8 / (2 / 2 / 2 / 2 / 2 / 2 / 2 / 2 )
-
AC INPUT & OUTPUT (ON-GRID)
Rated output power
100 KW
Rated AC voltage
3W / N / PE, 220 / 380 a.c. V
3W / N / PE, 230 / 400 a.c. V
Adjustable power factor range
~1 (0.8 lagging to 0.8 leading) -
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy 208 kWh
-
GENERAL
Dimensions（with inverter） (W×H×D)
1450 × 2250 × 1350 mm
Dimensions（without inverter） (W×H×D)
1050 × 2250 × 1350 mm
Weight（with inverter）
2165 kg
Weight（without inverter）
2015 kg
Ingress protection
IP55
-
-
AEL261-2A
-
PV INPUT
Max.recommended PV array power
195 kWp
MPPT voltage range
160 - 850 d.c. V
No. of MPP trackers / Strings per MPP tracker
8 / (2 / 2 / 2 / 2 / 2 / 2 / 2 / 2 )
-
AC INPUT & OUTPUT (ON-GRID)
Rated output power
130 KW
Rated AC voltage
3W / N / PE, 220 / 380 a.c. V
3W / N / PE, 230 / 400 a.c. V
Adjustable power factor range
~1 (0.8 lagging to 0.8 leading) -
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy 261 kWh
-
GENERAL
Dimensions（with inverter） (W×H×D)
1450 × 2250 × 1350 mm
Dimensions（without inverter） (W×H×D)
1050 × 2250 × 1350 mm
Weight（with inverter）
2505 kg
Weight（without inverter）
2355 kg
Ingress protection
IP55
-
