Three Phase Inverter

MIC G3

  • 4kW / 5kW / 6kW / 8kW / 10kW / 12kW / 15kW

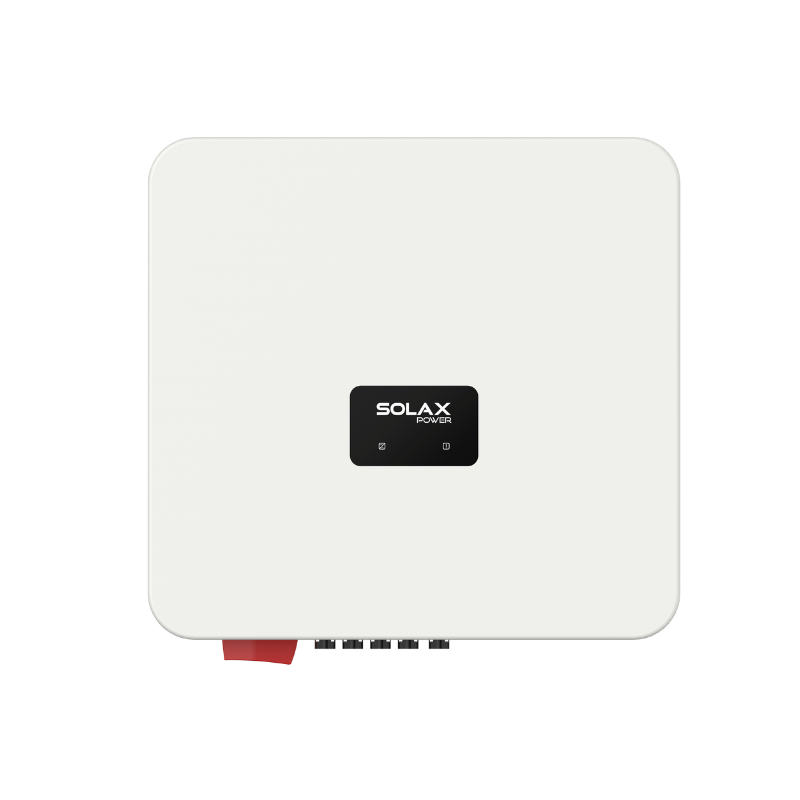

The SolaX MIC G3 is a compact three-phase residential on-grid inverter, available from 4kW to 15kW. It features a clean design, direct CT connection, and supports parallel operation for flexible home solar systems.

Product Advantage

With up to 98.6% efficiency, wide MPPT range, and 150% PV oversizing, MIC G3 maximizes energy yield. It combines intelligent protection and real-time connectivity, ensuring safe operation for everyday energy use.

Contact Us
MIC G3

High Efficiency

  • 98.6% ultra-high efficiency with SiC technology

  • Wide MPPT & low start-up voltage for more yield

  • Max. 20A input current per MPPT

  • 150% PV oversizing & 110% continuous AC output

Assured Safety

  • AI-powered AFCI for ultimate safety (Optional)

  • Type II DC/AC surge protection for lightning safety

  • IP66 ingress protection and C5 corrosion resistance

Intelligent Design

  • Direct CT connection for superior response speed

  • 60% less grid feed-in with CT, grid-friendly and worry-free

  • Unit-to-unit direct paralleling for seamless power control

  • Online I-V curve scanning for smart string fault diagnosis

Flexible Adaptability

  • Supports fuel-saving generator solutions

  • 24/7 real-time monitoring via WiFi, LAN, or 4G

Product Parameters

  • MIC4T-S3
  • MIC5T-S3
  • MIC6T-S3
  • MIC8T-S3
  • MIC10T-S3
  • MIC12T-S3
  • MIC15T-S3
  • MIC G3
    MIC4T-S3
    • PV INPUT
      Max. recommended PV array power6 kWp
      Operating voltage range120 V - 1000 d.c. V
      No. of MPP trackers / strings per MPP tracker
      		2 / (1 / 1)
      Max. input current per MPPT20 d.c. A


    • AC OUTPUT (ON-GRID)
      Rated AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V

      Rated AC frequency

      50 Hz / 60 Hz


    • GENERAL
      Dimensions (W × H × D)
      		384 x 427 x 178 mm
      Net weight
      		12 kg
      Cooling concept
      		Natural cooling


  • MIC G3
    MIC5T-S3
    • PV INPUT
      Max. recommended PV array power7.5 kWp
      Operating voltage range120 V - 1000 d.c. V
      No. of MPP trackers / strings per MPP tracker
      		2 / (1 / 1)
      Max. input current per MPPT20 d.c. A


    • AC OUTPUT (ON-GRID)
      Rated AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V

      Rated AC frequency

      50 Hz / 60 Hz


    • GENERAL
      Dimensions (W × H × D)
      		384 x 427 x 178 mm
      Net weight
      		12 kg
      Cooling concept
      		Natural cooling


  • MIC G3
    MIC6T-S3
    • PV INPUT
      Max. recommended PV array power9 kWp
      Operating voltage range120 V - 1000 d.c. V
      No. of MPP trackers / strings per MPP tracker
      		2 / (1 / 1)
      Max. input current per MPPT20 d.c. A


    • AC OUTPUT (ON-GRID)
      Rated AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V

      Rated AC frequency

      50 Hz / 60 Hz


    • GENERAL
      Dimensions (W × H × D)
      		384 x 427 x 178 mm
      Net weight
      		12 kg
      Cooling concept
      		Natural cooling


  • MIC G3
    MIC8T-S3
    • PV INPUT
      Max. recommended PV array power12 kWp
      Operating voltage range120 V - 1000 d.c. V
      No. of MPP trackers / strings per MPP tracker
      		2 / (1 / 1)
      Max. input current per MPPT20 d.c. A


    • AC OUTPUT (ON-GRID)
      Rated AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V

      Rated AC frequency

      50 Hz / 60 Hz


    • GENERAL
      Dimensions (W × H × D)
      		384 x 427 x 178 mm
      Net weight
      		12 kg
      Cooling concept
      		Natural cooling


  • MIC G3
    MIC10T-S3
    • PV INPUT
      Max. recommended PV array power15 kWp
      Operating voltage range120 V - 1000 d.c. V
      No. of MPP trackers / strings per MPP tracker
      		2 / (1 / 1)
      Max. input current per MPPT20 d.c. A


    • AC OUTPUT (ON-GRID)
      Rated AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V

      Rated AC frequency

      50 Hz / 60 Hz


    • GENERAL
      Dimensions (W × H × D)
      		384 x 427 x 178 mm
      Net weight
      		12 kg
      Cooling concept
      		Natural cooling


  • MIC G3
    MIC12T-S3
    • PV INPUT
      Max. recommended PV array power18 kWp
      Operating voltage range120 V - 1000 d.c. V
      No. of MPP trackers / strings per MPP tracker
      		2 / (1 / 1)
      Max. input current per MPPT20 d.c. A


    • AC OUTPUT (ON-GRID)
      Rated AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V

      Rated AC frequency

      50 Hz / 60 Hz


    • GENERAL
      Dimensions (W × H × D)
      		384 x 427 x 178 mm
      Net weight
      		12 kg
      Cooling concept
      		Smart air cooling


  • MIC G3
    MIC15T-S3
    • PV INPUT
      Max. recommended PV array power22.5 kWp
      Operating voltage range120 V - 1000 d.c. V
      No. of MPP trackers / strings per MPP tracker
      		2 / (1 / 1)
      Max. input current per MPPT20 d.c. A


    • AC OUTPUT (ON-GRID)
      Rated AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V

      Rated AC frequency

      50 Hz / 60 Hz


    • GENERAL
      Dimensions (W × H × D)
      		384 x 427 x 178 mm
      Net weight
      		12 kg
      Cooling concept
      		Smart air cooling
