Utility ESS
ORI
-

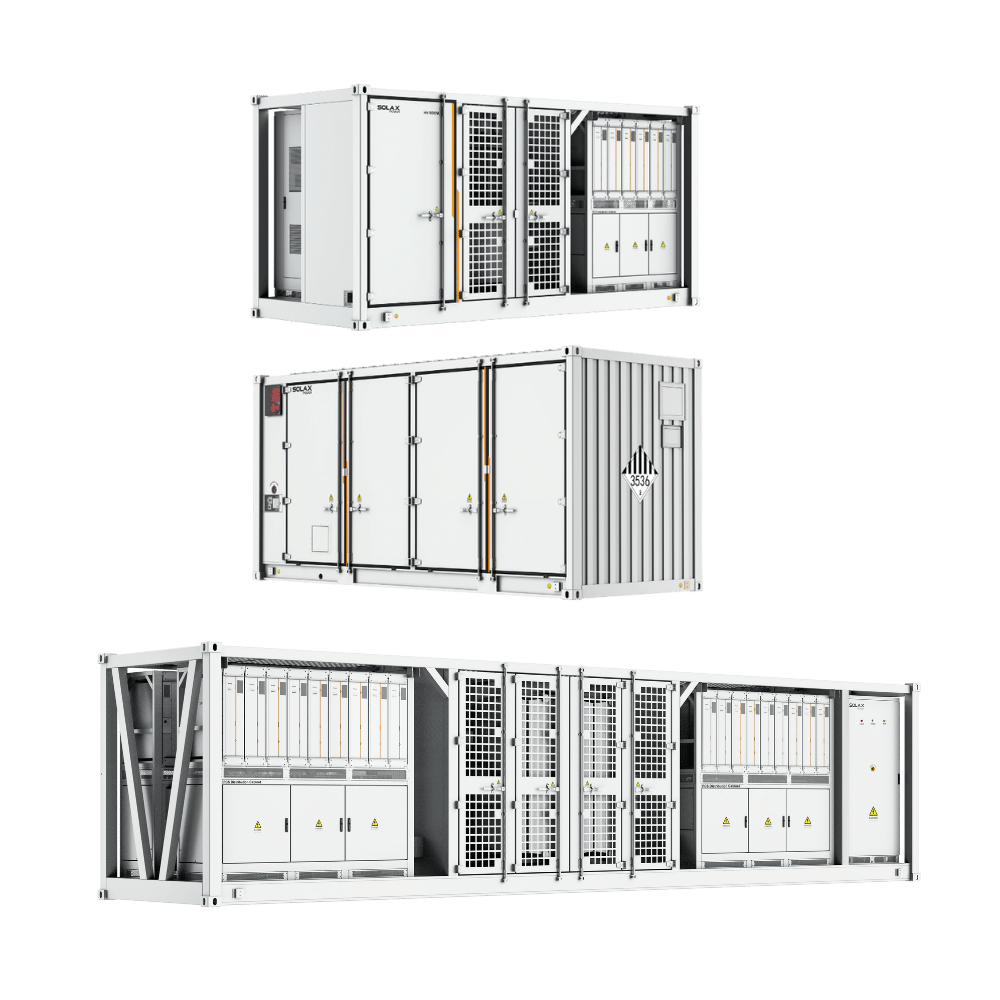

Liquid Cooling ESS System
The ORI energy storage system combines a 2.5 MW PCS and a 5.015 MWh battery system with a containerized design. With high-quality LFP battery cells and advanced liquid cooling, the large-scale energy storage system ensures fast commissioning and reduced on-site installation work.
Product Advantage
It features a high-performance string PCS with a maximum efficiency of 99%, ensuring maximum energy utilization. With pre-installed components and factory pre-commissioning, the system significantly shortens on-site installation time—ideal for rapid deployment in utility-scale energy storage projects.
Fast Deployment
One-stop service with streamlined coordination
Pre-installed components for rapid setup
Factory pre-commissioning halves debugging time
Advanced Safety
Multi-level monitoring ensures system reliability
Fire-resistant compartments prevent thermal runaway
Integrated detection and suppression for rapid risk control
System Flexibility
Modular design enhances uptime and scalability
IP55 outdoor cablinet and lP66 components handleharsh conditions
Rapid maintenance with 1-hour part replacement
High Efficiency
Intelligent clusters maximize output and efficiency
Liquid cooling ensures ≤3°C temperature uniformity
Smart controls lower energy and maintenance costs
Compact design reduces space and constructiondemands
Product Parameters
-

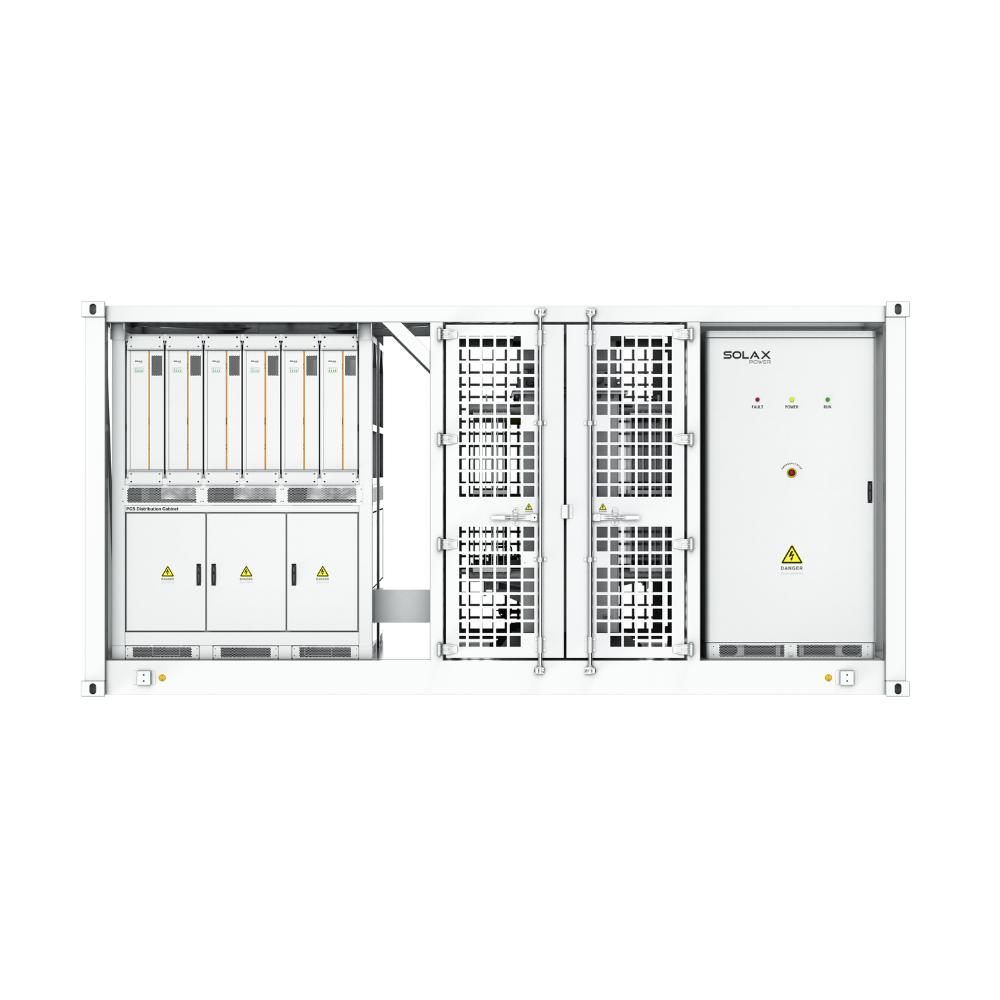

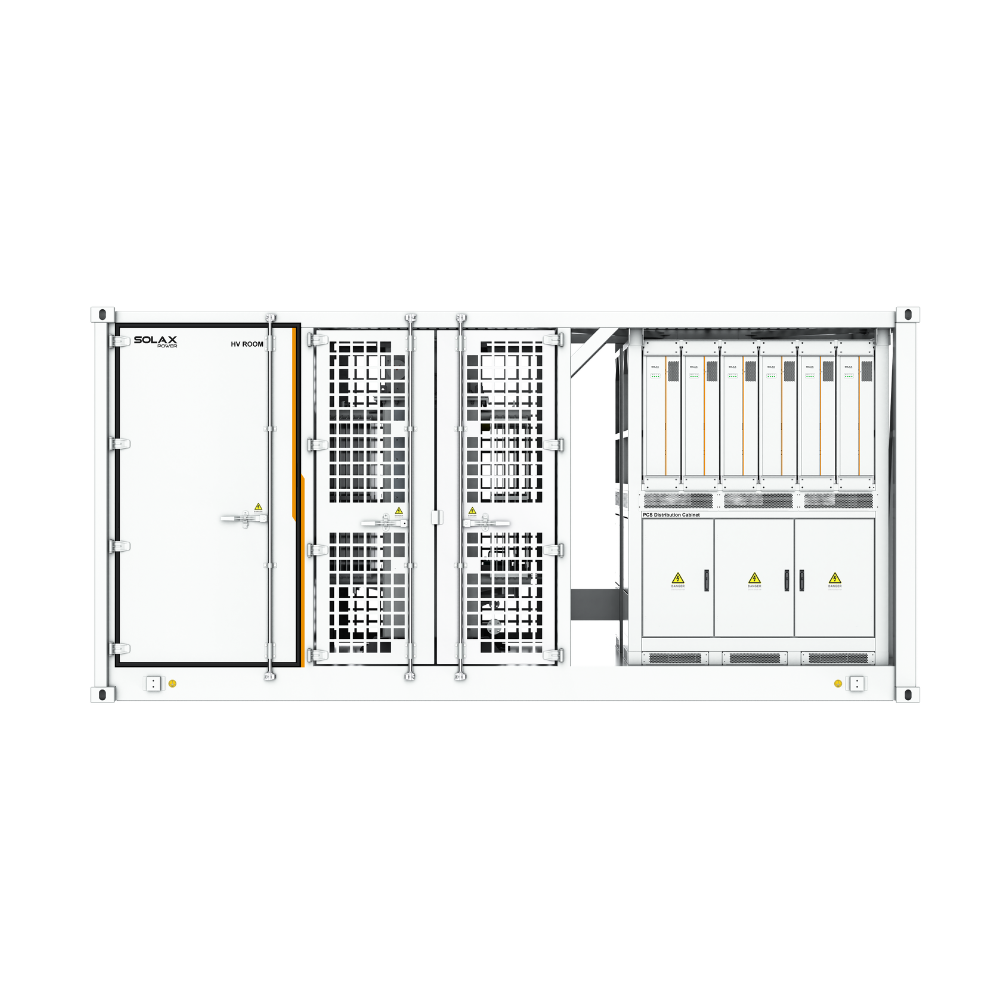

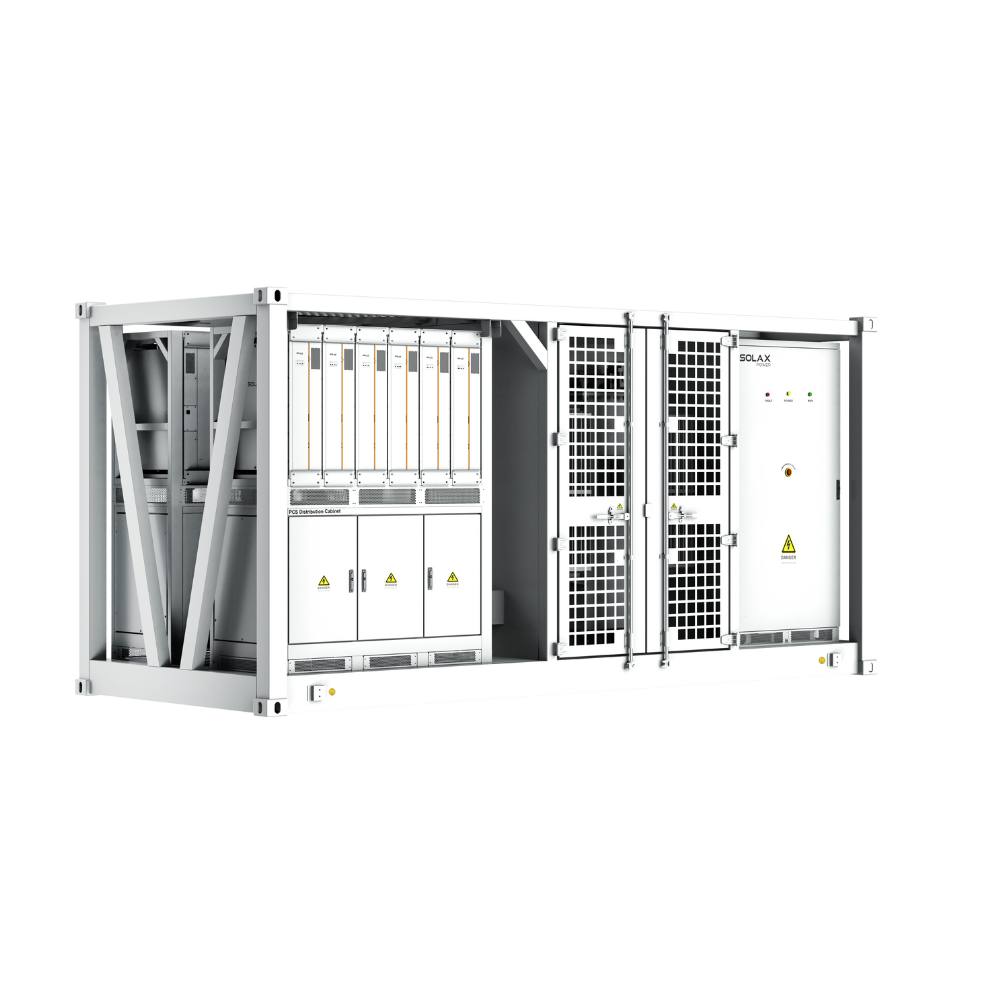

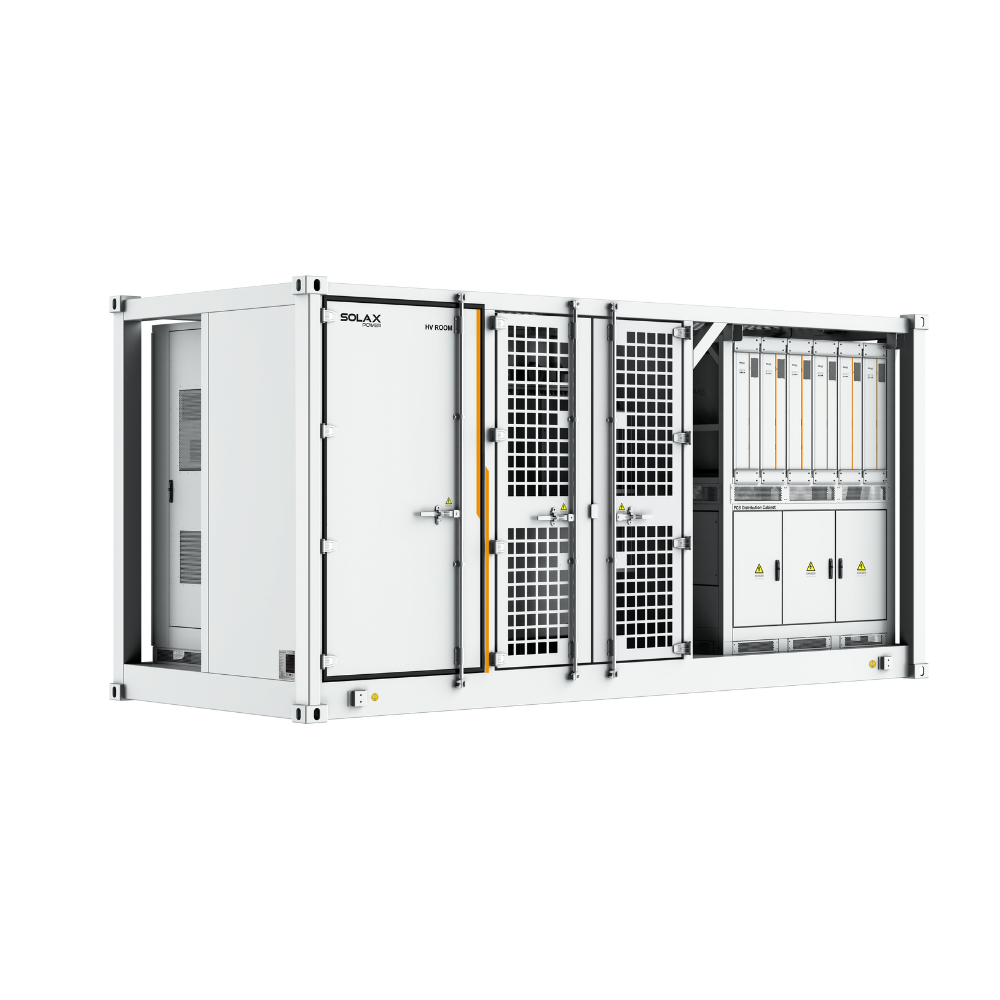

ORI-P2500-
DC SIDE
Max. DC voltage
1500 V
Rated DC power 215 kW × 12 DC voltage range 1000~1500V
-
AC SIDE
Rated AC power
2500 kVA
Rated AC voltage
6~35kV
Rated AC frequency
50 Hz
-
GENERAL
lsolation method
Oil-immersed transformer
Max. operating altitude
≤2000 m(optional: 4000m)
Dimensions (W x H x D)
6058 x2896 x2438 mm
Container weight
≤ 16 t
-
-

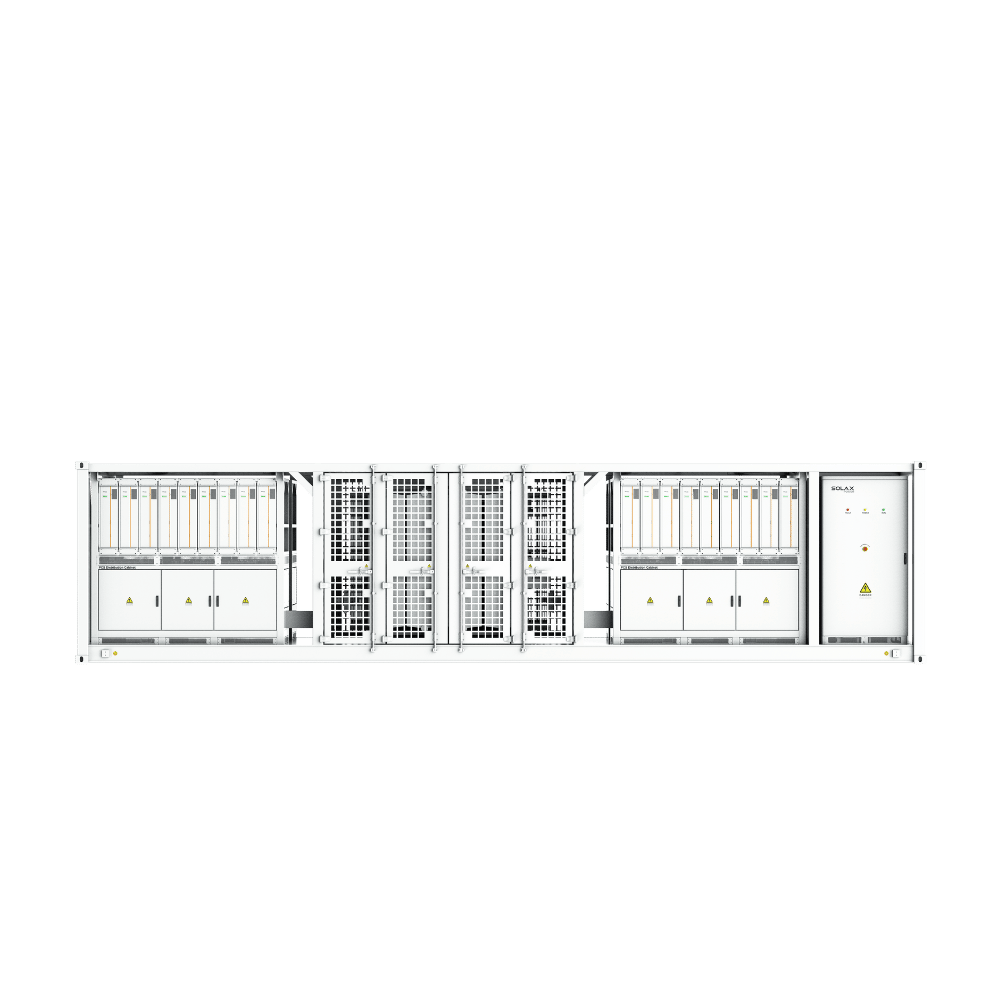

ORI-P5000
-
DC SIDE
Max. DC voltage
1500 V
Rated DC power 215 kW ×24 DC voltage range 1000 ~ 1500 V
-
AC SIDE
Rated AC power
5000 kVA
Rated AC voltage 10 ~ 35 kV -
GENERAL
Isolation method
Oil-immersed transformer
Max. operating altitude
≤ 2000 m (optional: 4000m)
Dimensions (W × H × D) 12192 × 2896 × 2438 mm Container weight ≤ 29.5 t
-
-

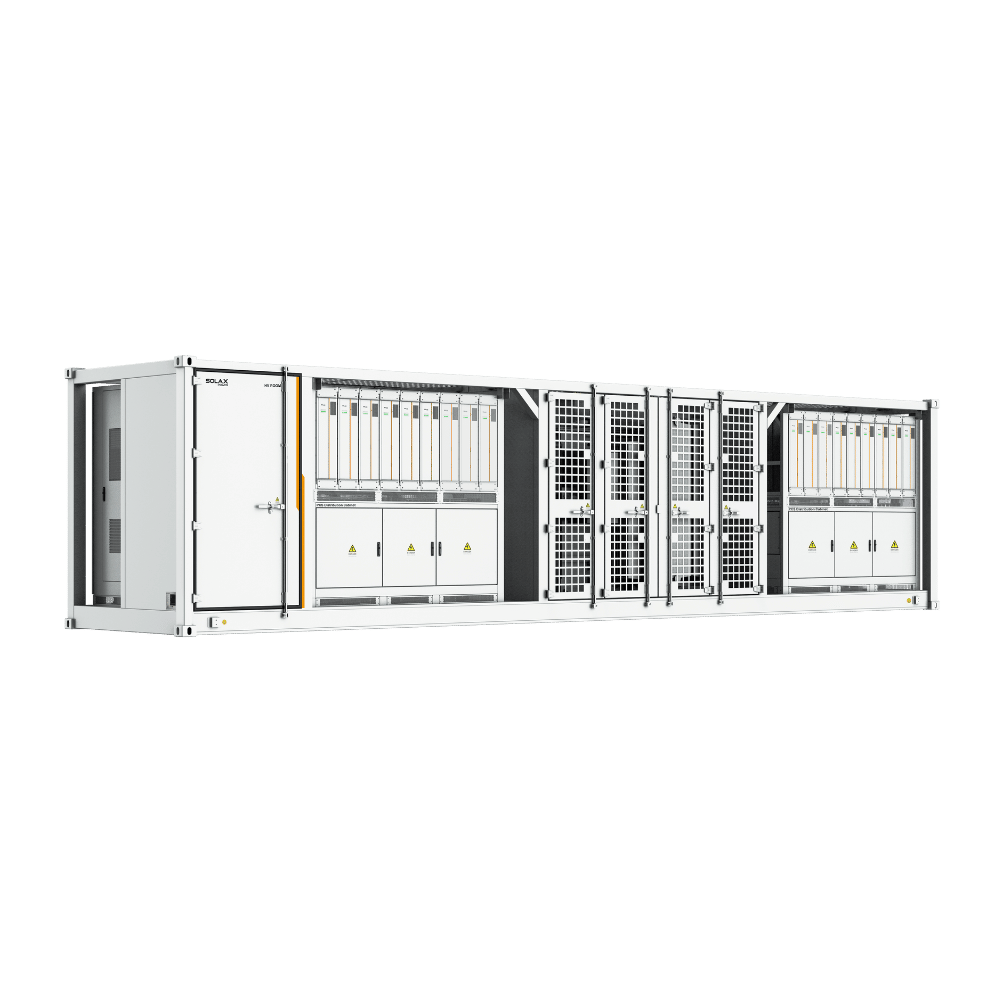

ORI-P7500
-
DC SIDE
Max. DC voltage
1500 V
Rated DC power 215 kW × 36 DC voltage range 1000 ~ 1500 V
-
AC SIDE
Rated AC power
7500 kVA
Rated AC voltage 10 ~ 35 kV -
GENERAL
Isolation method
Oil-immersed transformer
Max. operating altitude
≤ 2000 m (optional: 4000m)
Dimensions (W × H × D) 12192 × 2896 × 2438 mm Container weight ≤ 34.5 t
-
-

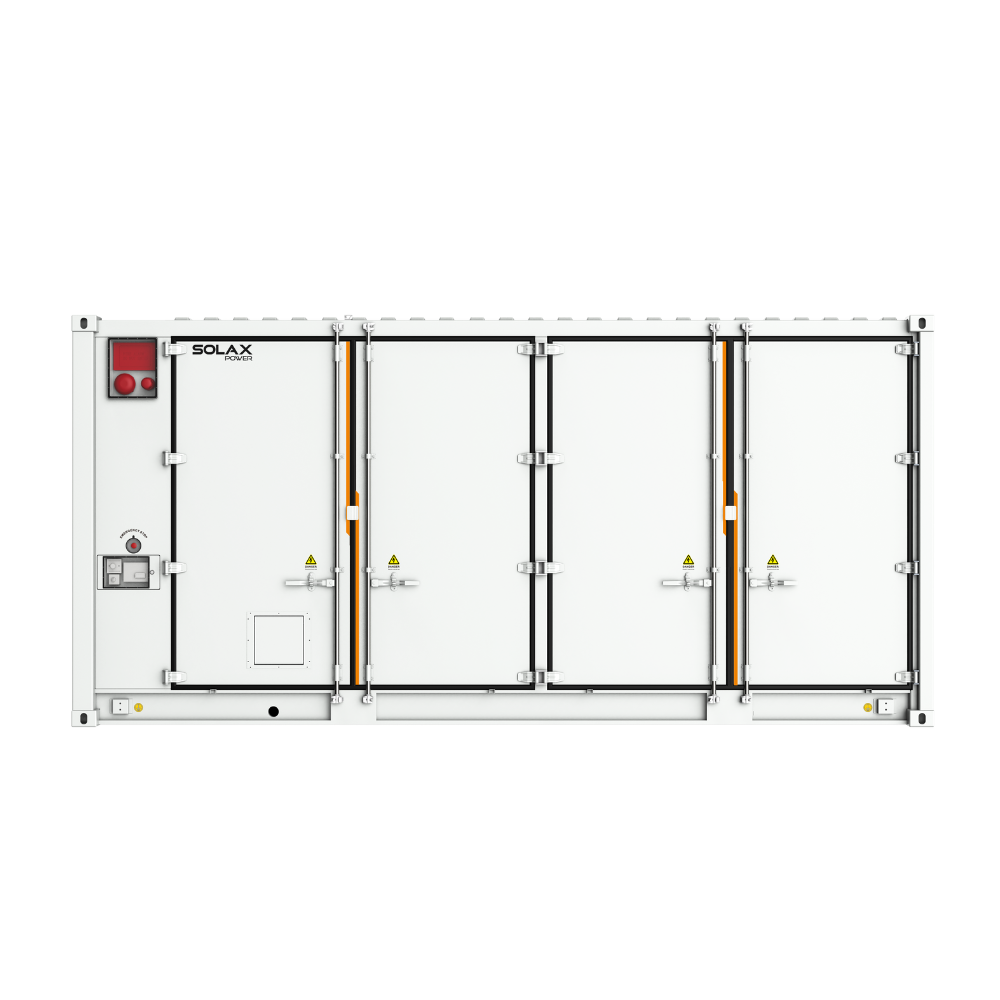

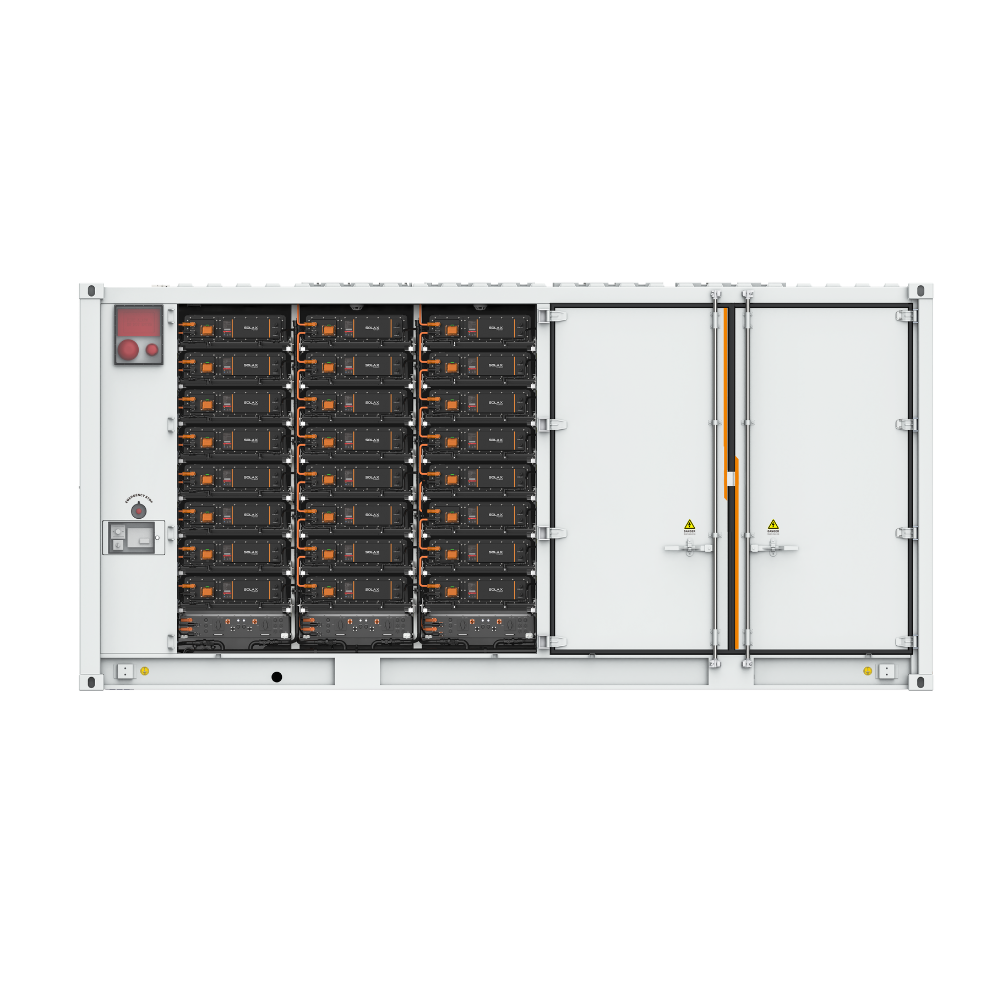

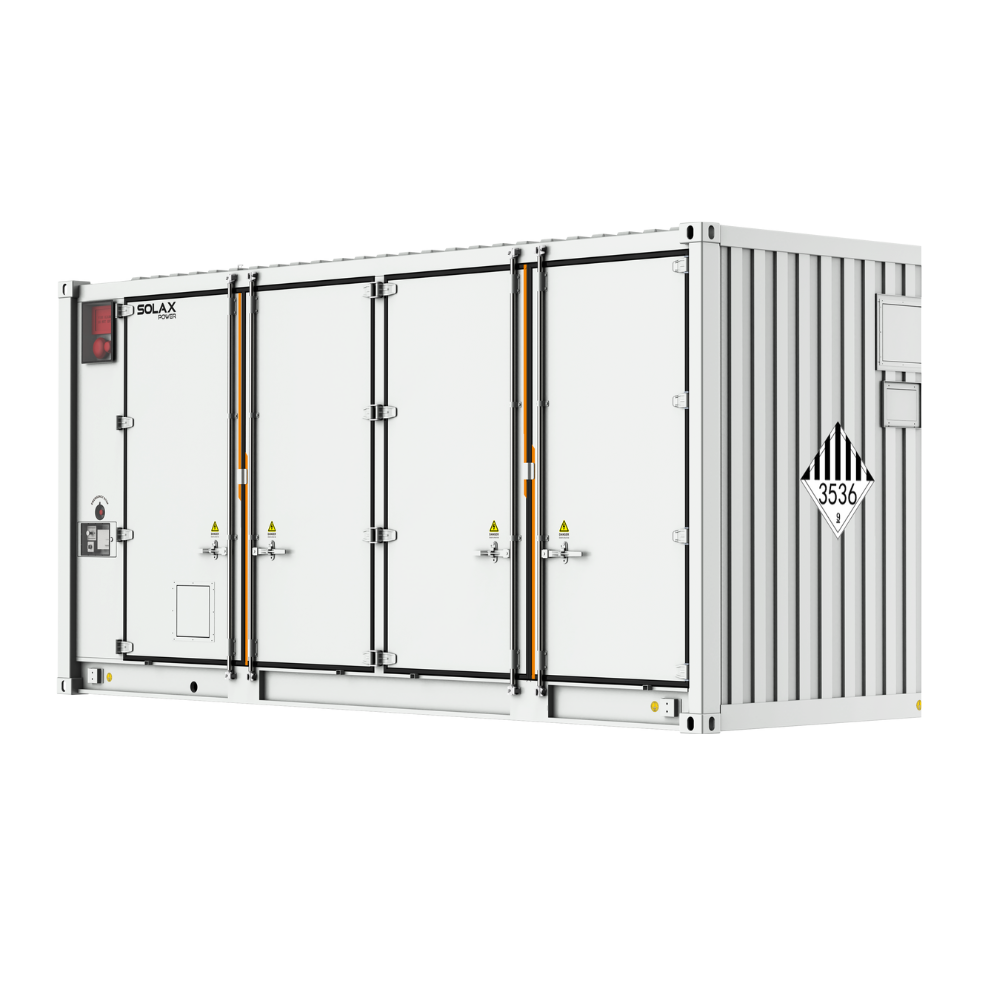

ORI-B5015L-2H
-
DC SIDE
DC rated voltage
1331.2 V
Rated energy capacity 5015 kWh Pack structure 1P416S*12
-
GENERAL
Cooling method
Liquid cooling
Max. operating altitude
≤ 4000 m
Dimensions (W x H x D)
6058 x 2896 x 2438 mm
Container weight
≤ 43 t
-
