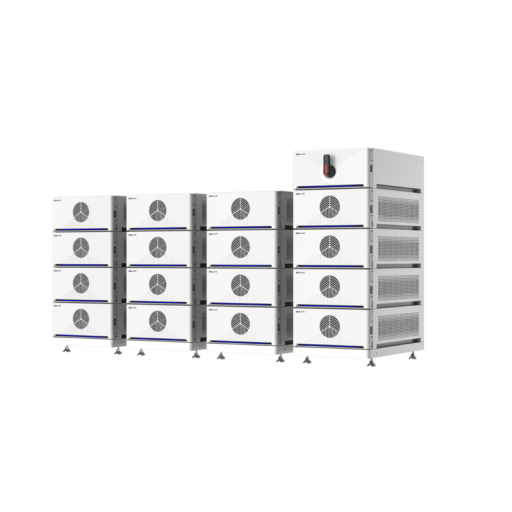

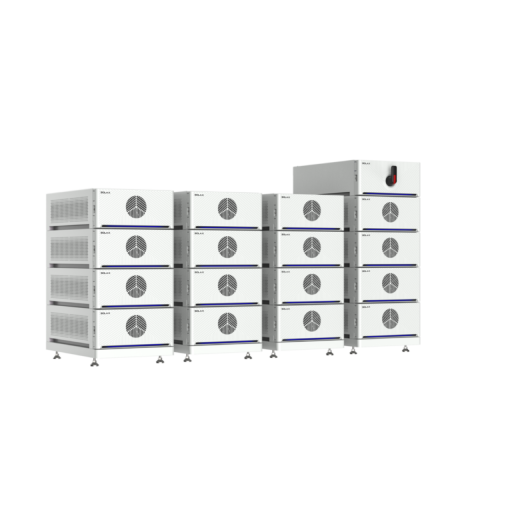

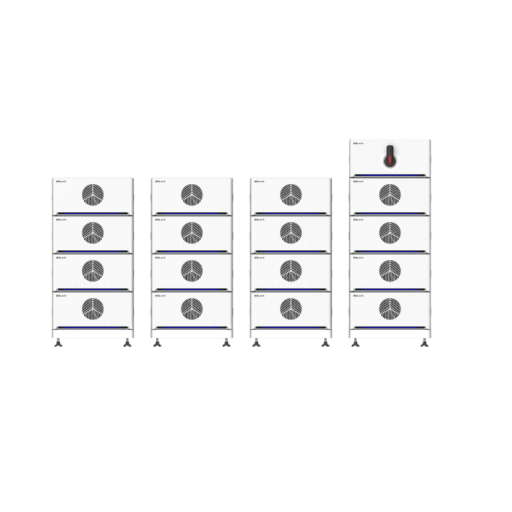

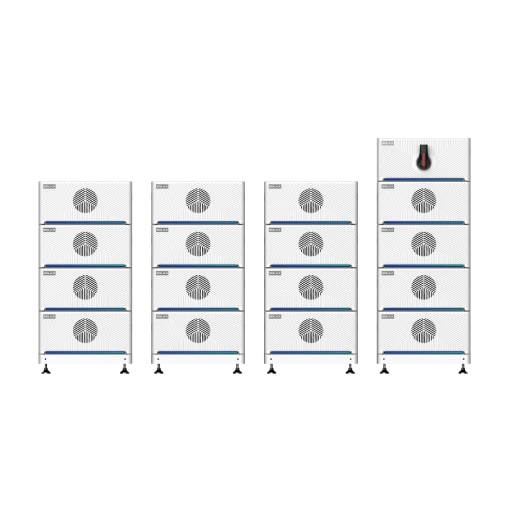

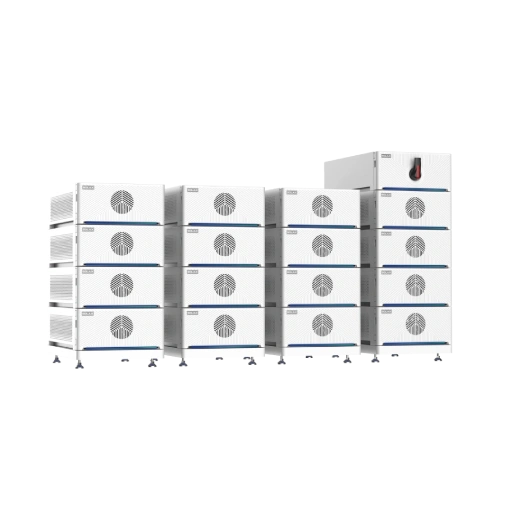

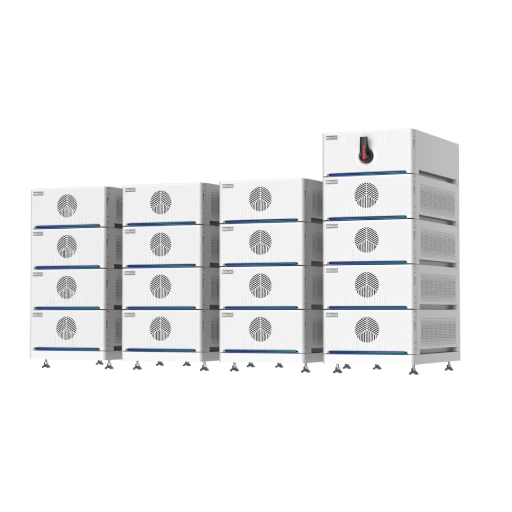

High-voltage Battery

HS160-PA

64kWh - 256kWh

The HS160-PA battery works with the X3-AELIO inverter to support flexible commercial and industrial energy storage. With pre-installed terminals, bottom leveling adjustment, and a handling-friendly design, it simplifies on-site installation and makes maintenance more efficient.

Data Download

Product Advantage

With AI-powered battery management, 8,000+ life cycles, 0.5C charge/discharge, cell-level monitoring, and built-in fuse protection, HS160-PA delivers safe, reliable, and scalable backup power for C&I applications.

AI-Powered Battery Management

Early detection of abnormal cell behavior
Predictive warning for internal short-circuit risks
Optimized battery operation to maximize lifecycle value

High Performance & Safety

0.5C charge/discharge capability with over 8,000 life cycles
Cell-level temperature and voltage monitoring for enhanced safety
Built-in fuse protection for reliable system operation

Easy Installation & Maintenance

Pre-installed terminals for faster on-site installation
Optimized for manual handling
Bottom leveling adjustable
Modular design enables rapid battery cascading and replacement

Flexible Expansion

Supports 4–16 packs per cluster
DC parallel up to 64 packs, expandable to 1024 kWh
Flexible configuration to meet 2–16 hours of backup need

*DC parallel will be upgraded in the future

Product Parameters

TS-HS640
TS-HS800
TS-HS960
TS-HS1120
TS-HS1280
TS-HS1440
TS-HS1600
TS-HS1760
TS-HS1920
TS-HS2080
TS-HS2240
TS-HS2400
TS-HS2560

TS-HS640
- GENERAL

  Nominal voltage
  204.8 d.c.V
  Nominal energy
  64.0 kWh
  Dimensions (L ×W × H)
  495 × 228 × 800 mm
  Net weight
  33 (±1)kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current^②(Current is affected by the number of batteries connected in parallel as well as temperature and SOC)
  173 A
- ENVIRONMENT LIMIT

  Ingress protection
  IP20
  Cooling concept
  Smart air cooling
TS-HS800
- GENERAL

  Nominal voltage
  256 d.c.V
  Nominal energy
  80.0 kWh
  Dimensions (L ×W × H)
  495 × 228 × 800 mm
  Net weight
  33 (±1)kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current^②(Current is affected by the number of batteries connected in parallel as well as temperature and SOC)
  173 A
- ENVIRONMENT LIMIT

  Ingress protection
  IP20
  Cooling concept
  Smart air cooling
TS-HS960
- GENERAL

  Nominal voltage
  307.2 d.c.V
  Nominal energy
  96.0 kWh
  Dimensions (L ×W × H)
  495 × 228 × 800 mm
  Net weight
  33 (±1)kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current^②(Current is affected by the number of batteries connected in parallel as well as temperature and SOC)
  173 A
- ENVIRONMENT LIMIT

  Battery type
  LFP
  Max. charge / discharge current^②(Current is affected by the number of batteries connected in parallel as well as temperature and SOC)
  173 A
TS-HS1120
- GENERAL

  Nominal voltage
  358.4 d.c.V
  Nominal energy
  112.0 kWh
  Dimensions (L ×W × H)
  495 × 228 × 800 mm
  Net weight
  33 (±1)kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current^②(Current is affected by the number of batteries connected in parallel as well as temperature and SOC)
  173 A
- ENVIRONMENT LIMIT

  Ingress protection
  IP20
  Cooling concept
  Smart air cooling
TS-HS1280
- GENERAL

  Nominal voltage
  409.6 d.c.V
  Nominal energy
  128.0 kWh
  Dimensions (L ×W × H)
  495 × 228 × 800 mm
  Net weight
  33 (±1)kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current^②(Current is affected by the number of batteries connected in parallel as well as temperature and SOC)
  173 A
- ENVIRONMENT LIMIT

  Ingress protection
  IP20
  Cooling concept
  Smart air cooling
TS-HS1440
- GENERAL

  Nominal voltage
  460.8 d.c.V
  Nominal energy
  144.0 kWh
  Dimensions (L ×W × H)
  495 × 228 × 800 mm
  Net weight
  33 (±1)kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current^②(Current is affected by the number of batteries connected in parallel as well as temperature and SOC)
  173 A
- ENVIRONMENT LIMIT

  Ingress protection
  IP20
  Cooling concept
  Smart air cooling
TS-HS1600
- GENERAL

  Nominal voltage
  512 d.c.V
  Nominal energy
  160.0 kWh
  Dimensions (L ×W × H)
  495 × 228 × 800 mm
  Net weight
  33 (±1)kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current^②(Current is affected by the number of batteries connected in parallel as well as temperature and SOC)
  173 A
- ENVIRONMENT LIMIT

  Ingress protection
  IP20
  Cooling concept
  Smart air cooling
TS-HS1760
- GENERAL

  Nominal voltage
  563.2 d.c.V
  Nominal energy
  176.0 kWh
  Dimensions (L ×W × H)
  495 × 228 × 800 mm
  Net weight
  33 (±1)kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current^②(Current is affected by the number of batteries connected in parallel as well as temperature and SOC)
  173 A
- ENVIRONMENT LIMIT

  Ingress protection
  IP20
  Cooling concept
  Smart air cooling
TS-HS1920
- GENERAL

  Nominal voltage
  614.4 d.c.V
  Nominal energy
  192.0 kWh
  Dimensions (L ×W × H)
  495 × 228 × 800 mm
  Net weight
  33 (±1)kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current^②(Current is affected by the number of batteries connected in parallel as well as temperature and SOC)
  173 A
- ENVIRONMENT LIMIT

  Ingress protection
  IP20
  Cooling concept
  Smart air cooling
TS-HS2080
- GENERAL

  Nominal voltage
  665.6 d.c.V
  Nominal energy
  208.0 kWh
  Dimensions (L ×W × H)
  495 × 228 × 800 mm
  Net weight
  33 (±1)kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current^②(Current is affected by the number of batteries connected in parallel as well as temperature and SOC)
  173 A
- ENVIRONMENT LIMIT

  Ingress protection
  IP20
  Cooling concept
  Smart air cooling
TS-HS2240
- GENERAL

  Nominal voltage
  716.8 d.c.V
  Nominal energy
  224.0 kWh
  Dimensions (L ×W × H)
  495 × 228 × 800 mm
  Net weight
  33 (±1)kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current^②(Current is affected by the number of batteries connected in parallel as well as temperature and SOC)
  173 A
- ENVIRONMENT LIMIT

  Ingress protection
  IP20
  Cooling concept
  Smart air cooling
TS-HS2400
- GENERAL

  Nominal voltage
  768 d.c.V
  Nominal energy
  240.0 kWh
  Dimensions (L ×W × H)
  495 × 228 × 800 mm
  Net weight
  33 (±1)kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current^②(Current is affected by the number of batteries connected in parallel as well as temperature and SOC)
  173 A
- ENVIRONMENT LIMIT

  Ingress protection
  IP20
  Cooling concept
  Smart air cooling
TS-HS2560
- GENERAL

  Nominal voltage
  819.2 d.c.V
  Nominal energy
  256.0 kWh
  Dimensions (L ×W × H)
  495 × 228 × 800 mm
  Net weight
  33 (±1)kg
- BATTERY MODULE

  Battery type
  LFP
  Max. charge / discharge current^②(Current is affected by the number of batteries connected in parallel as well as temperature and SOC)
  173 A
- ENVIRONMENT LIMIT

  Ingress protection
  IP20
  Cooling concept
  Smart air cooling
