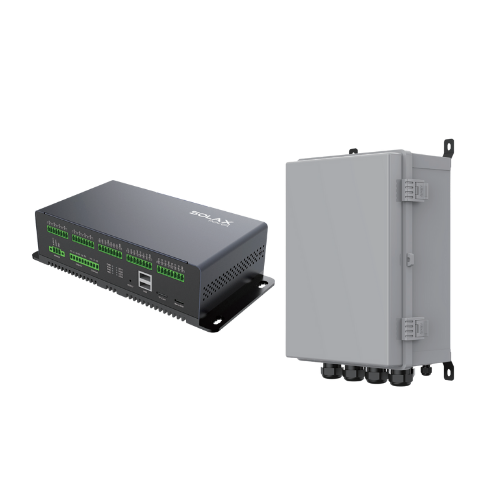

Monitoring Device

EMS1000 PRO

Use In C&I Energy Storage / Solar Power Stations

Designed for maximum efficiency and operational simplicity, the EMS1000 PRO streamlines system setup with automatic inverter address search and assignment, as well as auto-detection of EMS PRO slave devices. It ensures exceptional stability and industrial-grade reliability, featuring offline data transmission resumption to prevent data loss.

Data Download

Product Advantage

The EMS1000 PRO master controller offers versatile connectivity through RS485, Ethernet, and 4G, enabling the management of extensive solar systems with support for up to 120 connected inverters. Its robust architecture utilizes a Master-Slave framework capable of managing up to 10 slave devices. A built-in web interface provides comprehensive local and remote monitoring capabilities.

Smart & Flexible Features

RS485, Ethernet, and 4G Support
Up to 120 inverters connection
Master-Slave device management (Up to 10 slave devices)
Built-in web interface for local and remote monitoring

Efficiency & Simplicity

Automatic inverter address search and assignment
Auto-detection of EMS PRO slave devices
Remote parameter configuration and system power adjustment support

Stability & Reliability

Offline data transmission resumption and data loss prevention
Industrial-grade reliability for high stability

Product Parameters

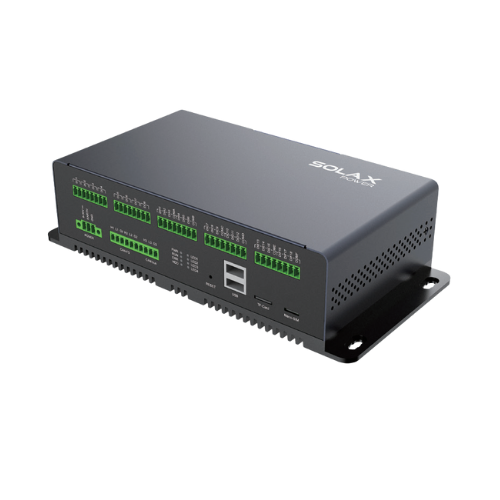

EMS1000 PRO

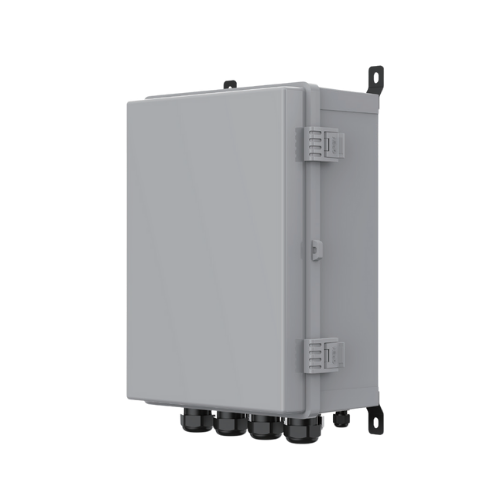

EMS1000 PRO BOX-8
EMS1000 PRO BOX-16

EMS1000 PRO
- SOLAXCLOUD COMMUNICATION

  WAN
  NET4, 10 M / 100 M / 1000 Mbps
  4G
  CAT4
  SIM Card Size
  Nano - 4 FF, 12.3 × 8.8 mm; Class C, 1.8 V
  Sample Rate
  Per 10 seconds, 2G data package
- COMMUNICATION PORTS

  LAN
  NET1 / NET2 / NET3, 10M / 100M / 1000Mbps
  WAN
  NET2,10 / 100 / 1000 Mbps
  RS485
  RS485 × 8
  CAN
  CAN-FD × 2, CAN-2.0 × 1
- MECHANICAL DATA

  Dimensions (W × H × D )
  232 × 113.2 × 59 mm
  Weight
  1400 g
  Installation Method
  DIN-rail mounting, Wall mounting
EMS1000 PRO BOX-8
- SOLAXCLOUD COMMUNICATION

  WAN
  NET4, 10 M / 100 M / 1000 Mbps
  4G
  CAT4
  SIM Card Size
  Nano - 4 FF, 12.3 × 8.8 mm; Class C, 1.8 V
  Sample Rate
  Per 10 seconds, 2G data package
- COMMUNICATION PORTS

  LAN
  LAN x 7, 10 / 100 / 1000 Mbps
  WAN
  NET2,10 / 100 / 1000 Mbps
  RS485
  RS485 × 8
- MECHANICAL DATA

  Dimensions (W × H × D )
  450 x 283 x 177 mm
  Weight
  5.3 kg
  Installation Method
  Wall Mounting
EMS1000 PRO BOX-16
- SOLAXCLOUD COMMUNICATION

  WAN
  NET4, 10 M / 100 M / 1000 Mbps
  4G
  CAT4
  SIM Card Size
  Nano - 4 FF, 12.3 × 8.8 mm; Class C, 1.8 V
  Sample Rate
  Per 10 seconds, 2G data package
- COMMUNICATION PORTS

  LAN
  LAN x 15, 10 / 100 / 1000 Mbps
  WAN
  NET2, 10 / 100 / 1000 Mbps
  RS485
  RS485 × 8
- MECHANICAL DATA

  Dimensions (W × H × D )
  450 x 283 x 177 mm
  Weight
  5.3 kg
  Installation Method
  Wall Mounting

Data Download

Datasheet
User Manual
Quick Installation Guide

English

File name

Language

Format

Size

Last updated

download
