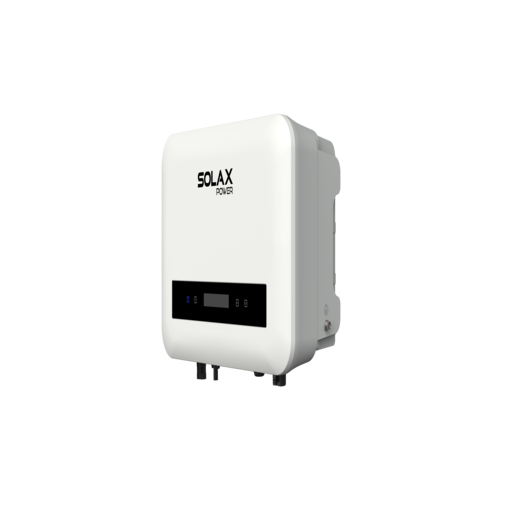

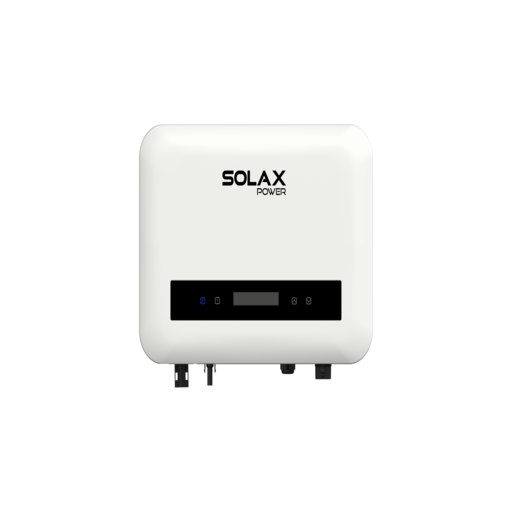

Single Phase Inverter

X1-MINI G4 PLUS

5kW / 6kW

With global MPP tracking, shade optimization and I-V curve diagnosis, it helps homeowners improve daily solar performance. Its flexible architecture supports parallel operation of up to five inverters, making residential PV expansion simpler and more adaptable.

Data Download

Product Advantage

The X1-MINI G4 PLUS supports 20A input for high-power PV panels, delivers extremely high power density and operates across an ultra-wide MPPT voltage range. It also maintains full power output up to 50°C, ensuring reliable operation in demanding environments.

High Efficiency

20A input to support high-power panels
Extremely high power density
Ultra-wide MPPT voltage range

Assured Safety

Type II SPD on AC & DC side
Built-in export control function

Intelligent Design

Global MPP tracking with shade optimization
I-V curve diagnosis

Flexible Adaptability

Supports parallel operation for up to 5 inverters, no external EMS required
Maintains full power up to 50°C

Product Parameters

X1-MINI-5K-G4-P
X1-MINI-6K-G4-P

X1-MINI-5K-G4-P
- PV INPUT

  Max. recommended PV array power
  7.5 kWp
  Operating voltage range
  40 ~ 550 d.c. V
  No. of MPP. trackers / strings per MPPT
  1/1
  Max. input current per MPPT
  20 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power 5 kVA
  Rated AC voltage
  230 a.c. V
- ENVIRONMENT LIMIT

  Operating temperature range
  -25 ~ 60°C
  Relative humidity
  4 ~ 100% RH (condensing)
- GENERAL

  Ingress protection
  IP66
  Dimensions (W /H / D)
  330 × 235 × 145 mm
  Net Weight
  7.5 kg
X1-MINI-6K-G4-P
- PV INPUT

  Max. recommended PV array power
  7.8 kWp
  Operating voltage range
  40 ~ 550 d.c. V
  No. of MPP. trackers / strings per MPPT
  1/1
  Max. input current per MPPT
  20 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power 6 kVA
  Rated AC voltage
  230 a.c. V
- ENVIRONMENT LIMIT

  Operating temperature range
  -25 ~ 60°C
  Relative humidity
  4 ~ 100% RH (condensing)
- GENERAL

  Ingress protection
  IP66
  Dimensions (W /H / D)
  330 × 235 × 145 mm
  Net Weight
  7.5 kg

Data Download

Datasheet

English

File name

Language

Format

Size

Last updated

download
