Three Phase Inverter

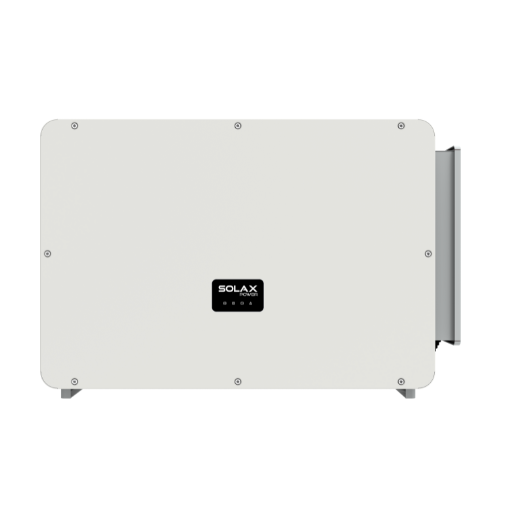

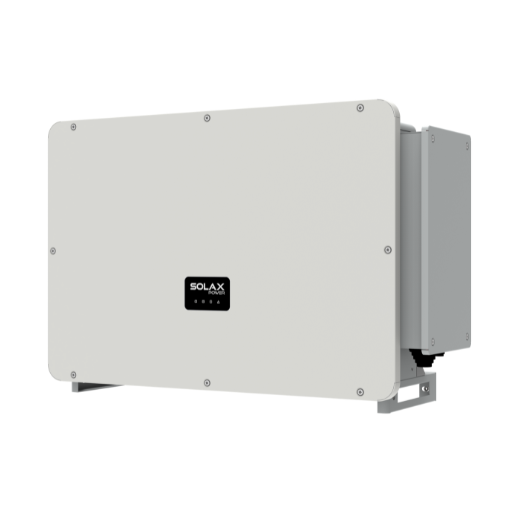

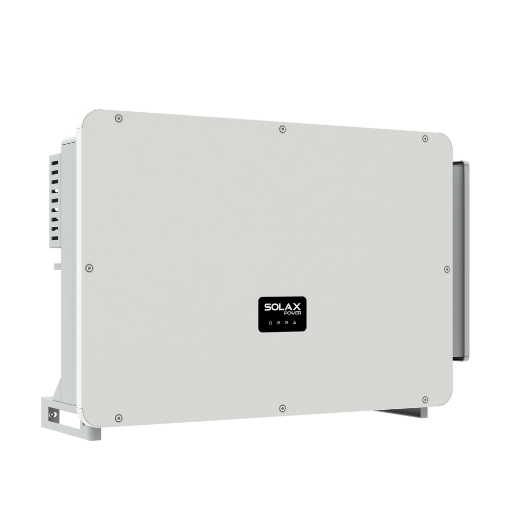

X3-FORTH

  • 75kW / 80kW / 100kW / 110kW / 120kW / 125kW / 136kW / 150kW

Available in 75kW to 150kW, the X3-FORTH series features a compact, lightweight build with advanced heat dissipation—over 5% smaller and lighter. Smart air cooling extends fan life, while I-V curve diagnosis and night-time reactive power compensation boost system efficiency and stability.

Achieving up to 99% efficiency, the X3-FORTH supports 150% PV oversizing and 110% output overloading. With 12 MPPTs, 32A per tracker, and a 180–1000Vdc MPPT range, it offers flexible, high-performance energy generation for commercial solar systems.

Contact Us

Flexible Adaptability

  • Built-in export power control function

  • Remote setting and upgrading

  • Aluminium AC cable connection available

Intelligent Design

  • Night-time reactive power compensation

  • Smart air cooling enhances fan longevity

  • Heat dissipation reduces system weight & size by over 5%

  • I-V curve diagnosis

High Efficiency

  • Up to 99% efficiency

  • 32A per MPP tracker

  • 180~1000Vdc MPPT voltage range

  • 150% PV oversizing, 110% overloading output

  • Max. 12 MPPTs, 2 strings per MPP tracker

Assured Safety

  • IP66 protection degree

  • AFCI support (optional)

  • AC terminal temperature detection

  • String current monitoring

  • 24 hours operation monitoring

  • Type II SPD on AC&DC side

Product Parameters

  • X3-FTH-75K
  • X3-FTH-80K
  • X3-FTH-100K
  • X3-FTH-110K
  • X3-FTH-120K
  • X3-FTH-125K
  • X3-FTH-136K-MV
  • X3-FTH-150K-MV
  • X3-FTH-75K
    • PV INPUT
      Max. recommended PV array power120 kWp
      MPPT voltage range180 ~ 1000 V
      No. of MPP trackers / strings per MPP tracker9 / 2
      Max. input current per MPPT32 A


    • AC OUTPUT
      Rated output power75 kW
      Nominal AC voltage

      3 / (N) / PE, 220 / 380 V

      3 / (N) / PE, 230 / 400 V


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      985 × 660 × 327.5 mm

      Net Weight83 kg


  • X3-FTH-80K
    • PV INPUT
      Max. recommended PV array power120 kWp
      MPPT voltage range180 ~ 1000 V
      No. of MPP trackers / strings per MPP tracker9 / 2
      Max. input current per MPPT32 A


    • AC OUTPUT
      Rated output power80 kW
      Nominal AC voltage

      3 / (N) / PE, 220 / 380 V

      3 / (N) / PE, 230 / 400 V


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      985 × 660 × 327.5 mm

      Net Weight83 kg


  • X3-FTH-100K
    • PV INPUT
      Max. recommended PV array power150 kWp
      MPPT voltage range180 ~ 1000 V
      No. of MPP trackers / strings per MPP tracker

      9 / 2

      12 / 2

      Max. input current per MPPT32 A


    • AC OUTPUT
      Rated output power80 kW
      Nominal AC voltage

      3 / (N) / PE, 220 / 380 V

      3 / (N) / PE, 230 / 400 V


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      985 × 660 × 327.5 mm

      Net Weight83 kg


  • X3-FTH-110K
    • PV INPUT
      Max. recommended PV array power165 kWp
      MPPT voltage range180 ~ 1000 V
      No. of MPP trackers / strings per MPP tracker

      9 / 2

      12 / 2

      Max. input current per MPPT32 A


    • AC OUTPUT
      Rated output power110 kW
      Nominal AC voltage

      3 / (N) / PE, 220 / 380 V

      3 / (N) / PE, 230 / 400 V


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      985 × 660 × 327.5 mm

      Net Weight83 kg


  • X3-FTH-120K
    • PV INPUT
      Max. recommended PV array power180 kWp
      MPPT voltage range180 ~ 1000 V
      No. of MPP trackers / strings per MPP tracker12 / 2
      Max. input current per MPPT32 A


    • AC OUTPUT
      Rated output power120 kW
      Nominal AC voltage

      3 / (N) / PE, 220 / 380 V

      3 / (N) / PE, 230 / 400 V


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      985 × 660 × 327.5 mm

      Net Weight87 kg


  • X3-FTH-125K
    • PV INPUT
      Max. recommended PV array power180 kWp
      MPPT voltage range180 ~ 1000 V
      No. of MPP trackers / strings per MPP tracker12 / 2
      Max. input current per MPPT32 A


    • AC OUTPUT
      Rated output power125 kW
      Nominal AC voltage

      3 / (N) / PE, 220 / 380 V

      3 / (N) / PE, 230 / 400 V


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      985 × 660 × 327.5 mm

      Net Weight87 kg


  • X3-FTH-136K-MV
    • PV INPUT
      Max. recommended PV array power204 kWp
      MPPT voltage range180 ~ 1000 V
      No. of MPP trackers / strings per MPP tracker12 / 2
      Max. input current per MPPT32 A


    • AC OUTPUT
      Rated output power136 kW
      Nominal AC voltage

      3 / PE, 500 / 540 V


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      985 × 660 × 327.5 mm

      Net Weight87 kg


  • X3-FTH-150K-MV
    • PV INPUT
      Max. recommended PV array power225 kWp
      MPPT voltage range180 ~ 1000 V
      No. of MPP trackers / strings per MPP tracker12 / 2
      Max. input current per MPPT32 A


    • AC OUTPUT
      Rated output power150 kW
      Nominal AC voltage3 / PE, 500 / 540 V


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      985 × 660 × 327.5 mm

      Net Weight87 kg
