Microinverter

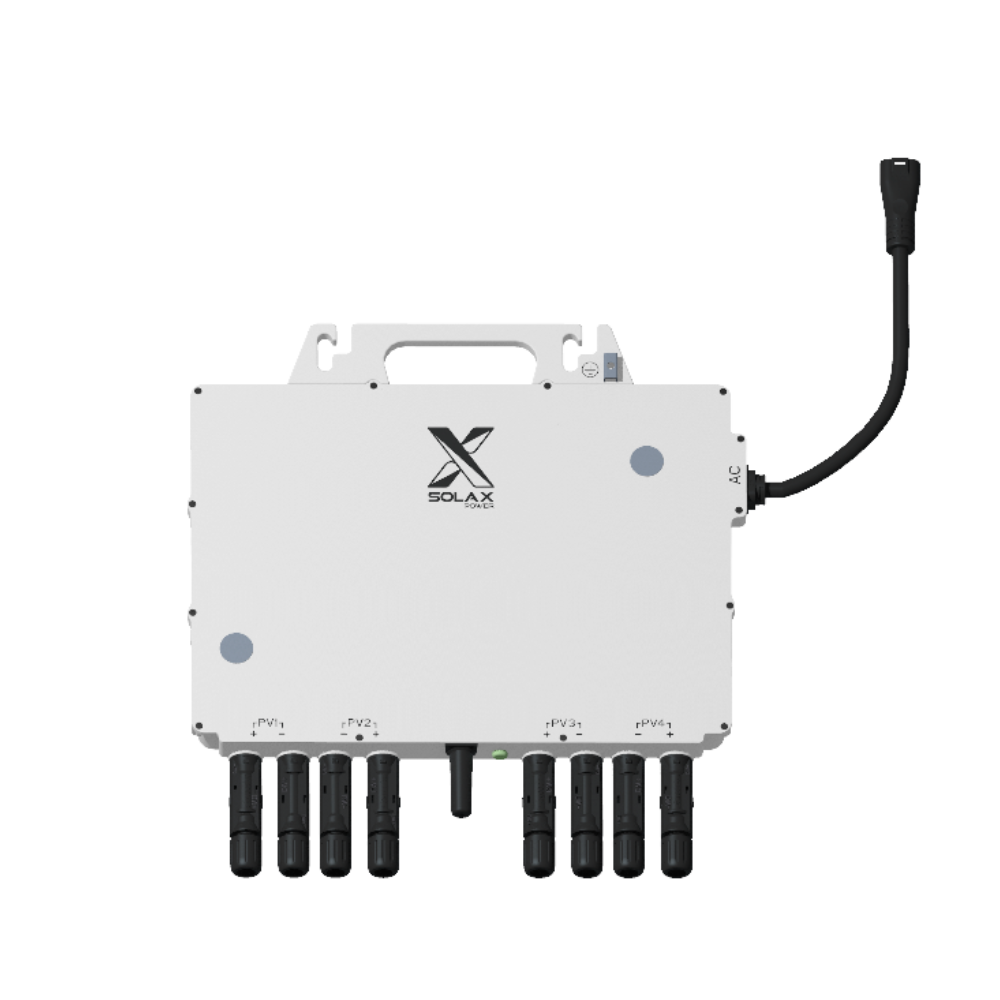

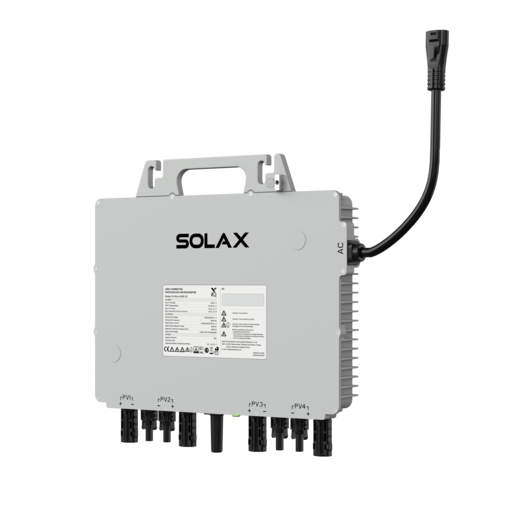

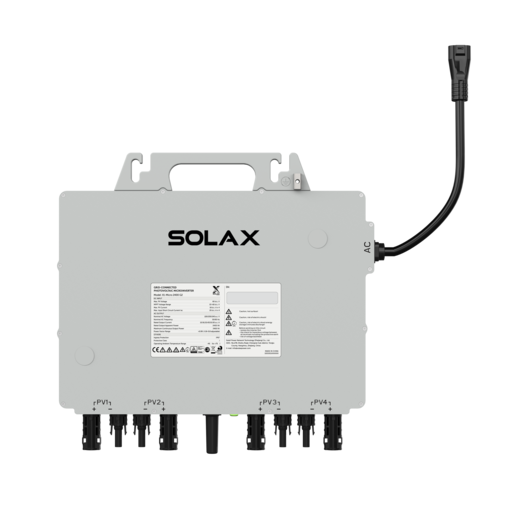

X1-Micro 4 in 1 G2

  • 1875 W / 2000 W / 2250 W / 2400 W

The X1-Micro 4 in 1 G2 is a high-efficiency, safe, and intelligent microinverter designed for modern photovoltaic (PV) systems. Combining cutting-edge technology with robust design, the X1-Micro 4 in 1 G2 can fit for residential and commercial PV installations.



Product Advantage

Delivering up to 2400 VA output power and 18 A DC input current, this inverter achieves peak efficiency of up to 97% across a wide operating temperature range from -40°C to 75°C. Ideal for maximizing energy yield while minimizing maintenance.

Contact Us

Assured Safety

  • Rapid shutdown function

  • Safety protection relay integrated

  • IP67 ingress protection

Flexible Adaptability

  • Plug and play

  • Supporting AC coupling solution

  • Supporting 1-phase microinverter integration into  3-phase power grids

High Efficiency

  • Max. 2400 VA output power

  • Max. 18 A DC input current

  • Four MPPT channels

  • Max. efficiency up to 97%

Intelligent Design

  • Reactive power regulation (0.8 leading…0.8 lagging)

  • Built-in WiFi / PLC communication

  • Support zero export function

  • Module level monitoring and control

  • Remote firmware upgrades, parameter configuration,  and fault analysis

Product Parameters

  • X1-Micro 1875 G2
  • X1-Micro 2000 G2
  • X1-Micro 2250 G2
  • X1-Micro 2400 G2
  • X1-Micro 1875 G2
    • PV INPUT
      Commonly used module power per input360 ~ 600+ W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1




    • AC OUTPUT
      Rated AC output power1875 VA


    • EFFICIENCY
      Max. efficiency97.00%
      MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)317 × 225 × 41 mm
      Weight5.2 kg
      Cooling ConceptNatural cooling


  • X1-Micro 2000 G2
    • PV INPUT
      Commonly used module power per input400 ~ 670+ W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1





    • AC OUTPUT
      Rated AC output power2000 VA


    • EFFICIENCY
      Max. efficiency97.00%
      MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)317 × 225 × 41 mm
      Weight5.2 kg
      Cooling ConceptNatural cooling


  • X1-Micro 2250 G2
    • PV INPUT
      Commonly used module power per input450 ~ 700+ W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1





    • AC OUTPUT
      Rated AC output power2250 VA


    • EFFICIENCY
      Max. efficiency97.00%
      MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)317 × 225 × 41 mm
      Weight5.2 kg
      Cooling ConceptNatural cooling


  • X1-Micro 2400 G2
    • PV INPUT
      Commonly used module power per input500 ~ 750+ W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1





    • AC OUTPUT
      Rated AC output power2400 VA


    • EFFICIENCY
      Max. efficiency97.00%
      MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)317 × 225 × 41 mm
      Weight5.2 kg
      Cooling ConceptNatural cooling
