Hybrid Inverter

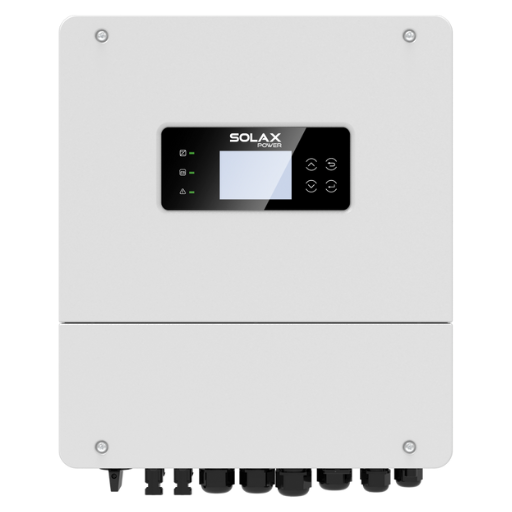

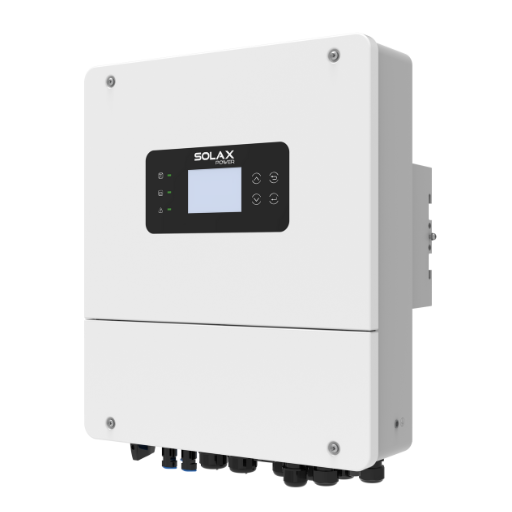

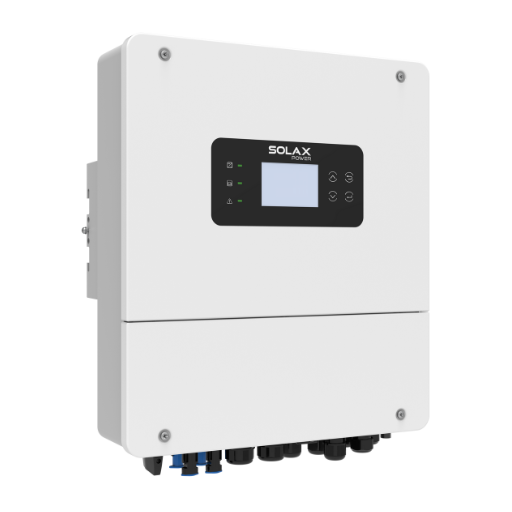

X1-HYB LV

  • 3.0kW / 3.7kW / 4.0kW / 4.6kW / 5.0kW / 6.0kW

The X1-Hybrid LV series, available from 3kW to 6kW, combines a user-friendly LCD screen to meet modern residential energy needs. The inverter also features easy generator and microgrid integration, making it an ideal choice for a wide range of hybrid solar applications.

Product Advantage

The X1-Hybrid LV series, available from 3kW to 6kW, combines a user-friendly LCD screen to meet modern residential energy needs. The inverter also features easy generator and microgrid integration, making it an ideal choice for a wide range of hybrid solar applications.

Contact Us

Smart Management

  • Single unit UPS-level switchover time < 4 ms

  • Global MPP scan for optimal energy harvest*  (Feature to be upgraded in the future)

  • Smart loads management


High Performance

  • 200% PV oversizing and up to 110% AC output

  • 200% peak EPS power for 10 s

  • Max. 120A charging / discharging current

  • Low start-up voltage for longer operation



Assured Reliability

  • Battery terminal temperature detection

  • IP65 protection degree

  • Type II SPD on AC&DC side

  • Optional AFCI protection*  (Feature to be upgraded in the future)



Flexible Adaptability

  • Max. 3pcs parallel for on-grid and off-grid*  (Feature to be upgraded in the future)

  • Microgrid and generator function for versatile operations*  (Feature to be upgraded in the future)

  • Max. 16A DC input current for high-power solar panel

Product Parameters

  • X1-HYB-3.0-LV
  • X1-HYB-3.7-LV
  • X1-HYB-4.0-LV
  • X1-HYB-5.0-LV
  • X1-HYB-6.0-LV
  • X1-HYB-3.0-LV
    • PV INPUT
      Max. recommended PV array power6000 Wp
      Operating voltage range80 ~ 520 V
      No. of MPP trackers / strings per MPP tracker2(1/1)
      Max. input current per MPPT16 A/16 A


    • AC INPUT & OUTPUT(ON-GRID)
      Rated output power3000 W
      Rated AC voltage1/N/PE, 220/230/240 V


    • EPS (OFF-GRID) OUTPUT (WITH BATTERY)
      Peak EPS output power6000 VA, 10 s
      Switchover time<4 ms


    • GENERAL
      Ingress protectionIP65
      Dimensions (W × H × D)397 × 490 × 201 mm
      Net weight17.3 kg



  • X1-HYB-3.7-LV
    • PV INPUT
      Max. recommended PV array power7360 Wp
      Operating voltage range80 ~ 520 V
      No. of MPP trackers / strings per MPP tracker2(1/1)
      Max. input current per MPPT16 A/16 A



    • AC INPUT & OUTPUT(ON-GRID)
      Rated output power3680 W
      Rated AC voltage1/N/PE, 220/230/240 V


    • EPS (OFF-GRID) OUTPUT (WITH BATTERY)
      Peak EPS output power8000 VA, 10 s
      Switchover time<4 ms


    • GENERAL
      Ingress protectionIP65
      Dimensions (W × H × D)397 × 490 × 201 mm
      Net weight16.5 kg



  • X1-HYB-4.0-LV
    • PV INPUT
      Max. recommended PV array power8000 Wp
      Operating voltage range80 ~ 520 V
      No. of MPP trackers / strings per MPP tracker2(1/1)
      Max. input current per MPPT16 A/16 A



    • AC INPUT & OUTPUT(ON-GRID)
      Rated output power4000 W
      Rated AC voltage1/N/PE, 220/230/240 V




    • EPS (OFF-GRID) OUTPUT (WITH BATTERY)
      Peak EPS output power8000 VA, 10 s
      Switchover time<4 ms




    • GENERAL
      Ingress protectionIP65
      Dimensions (W × H × D)397 × 490 × 201 mm
      Net weight16.5 kg




  • X1-HYB-5.0-LV
    • PV INPUT
      Max. recommended PV array power10000 Wp
      Operating voltage range80 ~ 520 V
      No. of MPP trackers / strings per MPP tracker2(1/1)
      Max. input current per MPPT16 A/16 A



    • AC INPUT & OUTPUT(ON-GRID)
      Rated output power5000 W
      Rated AC voltage1/N/PE, 220/230/240 V




    • EPS (OFF-GRID) OUTPUT (WITH BATTERY)
      Peak EPS output power10000 VA, 10 s
      Switchover time<4 ms


    • GENERAL
      Ingress protectionIP65
      Dimensions (W × H × D)397 × 490 × 201 mm
      Net weight17.3 kg




  • X1-HYB-6.0-LV
    • PV INPUT
      Max. recommended PV array power12000 Wp
      Operating voltage range80 ~ 520 V
      No. of MPP trackers / strings per MPP tracker2(1/1)
      Max. input current per MPPT16 A/16 A



    • AC INPUT & OUTPUT(ON-GRID)
      Rated output power6000 W
      Rated AC voltage1/N/PE, 220/230/240 V




    • EPS (OFF-GRID) OUTPUT (WITH BATTERY)
      Peak EPS output power12000 VA, 10 s
      Switchover time<4 ms



    • GENERAL
      Ingress protectionIP65
      Dimensions (W × H × D)397 × 490 × 201 mm
      Net weight17.3 kg
