C&I ESS

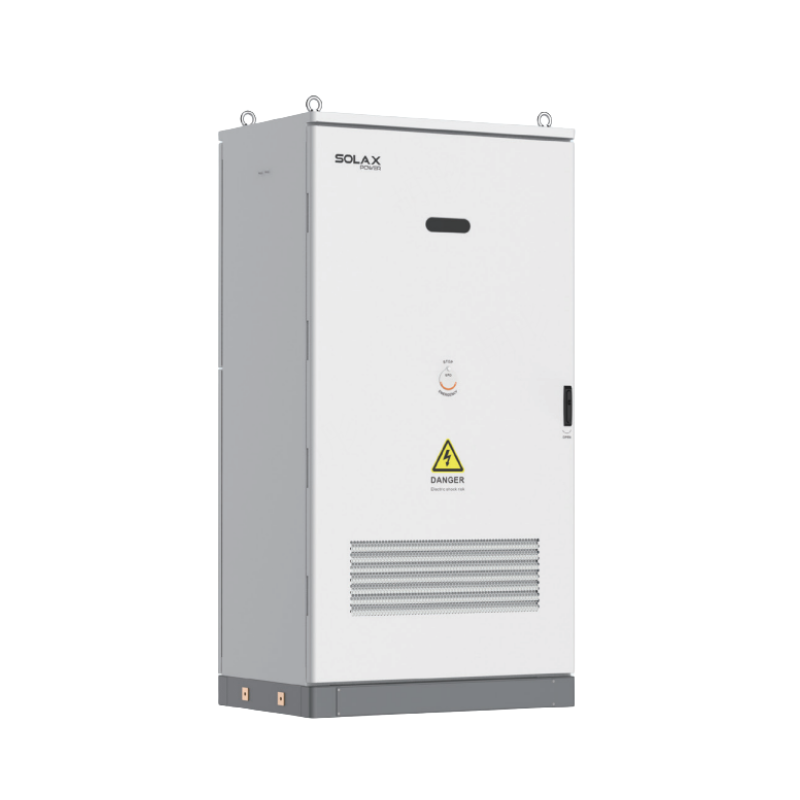

AC Switching Cabinet

  • Nexus Zero

Introducing the Nexus Zero Series AC Switching Cabinet: the intelligent core of your energy ecosystem. Engineered for flawless interoperability, it seamlessly bridges your ESS-AELIO and ESS-TRENE systems to manage the critical transition between on-grid and off-grid power, ensuring uninterrupted energy flow and ultimate operational resilience.

Product Advantage

Supports a maximum switching power of up to 1.25MW, it features real-time grid monitoring, immediately response to sudden faulty from grid,seamless switching. This ensures uninterrupted operation of critical loads while maintainingnormal power consumption patterns and quaranteeing the continuity of equipment operation

Contact Us

Intelligent Operation

  • Seamless switching between grid and off-grid

  • EMS 1000 PRO Inside: Seamlessly integrated, intelligent  management of PV, ESS, and loads for optimal energy  performance

  • Supports a maximum switching power of up to 1.25MW

Safer and Reliable

  • Load-friendly design, protects equipment from unstable  grid damage

  • Supports Type II surge protection

  • Supports water ingress alerts, over-temperature  warnings, and door lock status feedback

Environmental Adaptability

  • IP55 protection rating, suitable for both indoor and  outdoor use

  • Supports operation in environments ranging from -30°C  to 55°C

  • Reliable operation at 3000 meters without derating

  • C5-M corrosion protection standards for reliable  performance in the harshest environments

Versatile Applications

  • Supports connection to diesel generators to ensure  stable energy supply

  • Intelligent operation, supports multiple operation modes

  • Supports building on-grid/off-grid, solar-storage microgrid, and solar-storage-diesel microgrid solutions

Product Parameters

  • ZERO-125
  • ZERO-250
  • ZERO-500
  • ZERO-750
  • ZERO-1250
  • ZERO-125
    • SYSTEM PARAMETERS
      Rated AC voltage

      3 / N / PE ,230 / 400 V

      3 / N / PE ,220 / 380 V

      Rated AC current@230V
      		181.2 A
      Rated AC current@220V
      		189.4 A
      Ingress protection
      		IP55
      Dimension (W × H × D)
      		900 x 1600 x 800 mm
      Weight (kg)
      		300 kg



  • ZERO-250
    • SYSTEM PARAMETERS
      Rated AC voltage

      3 / N / PE ,230 / 400 V

      3 / N / PE ,220 / 380 V

      Rated AC current@230V
      		362.3 A
      Rated AC current@220V
      		378.8 A
      Ingress protection
      		IP55
      Dimension (W × H × D)
      		900 x 1600 x 800 mm
      Weight (kg)
      		330 kg



  • ZERO-500
    • SYSTEM PARAMETERS
      Rated AC voltage

      3 / N / PE ,230 / 400 V

      3 / N / PE ,220 / 380 V

      Rated AC current@230V
      		724.6 A
      Rated AC current@220V
      		757.6 A
      Ingress protection
      		IP55
      Dimension (W × H × D)
      		1200 x 2300 x 800 mm
      Weight (kg)
      		660 kg



  • ZERO-750
    • SYSTEM PARAMETERS
      Rated AC voltage

      3 / N / PE ,230 / 400 V

      3 / N / PE ,220 / 380 V

      Rated AC current@230V
      		1087 A
      Rated AC current@220V
      		1136 A
      Ingress protection
      		IP55
      Dimension (W × H × D)
      		1200 x 2300 x 800 mm
      Weight (kg)
      		730 kg



  • ZERO-1250
    • SYSTEM PARAMETERS
      Rated AC voltage

      3 / N / PE ,230 / 400 V

      3 / N / PE ,220 / 380 V

      Rated AC current@230V
      		1811.6 A
      Rated AC current@220V
      		1893.9 A
      Ingress protection
      		IP55
      Dimension (W × H × D)
      		1900 x 2300 x 1200 mm
      Weight (kg)
      		1500 kg
