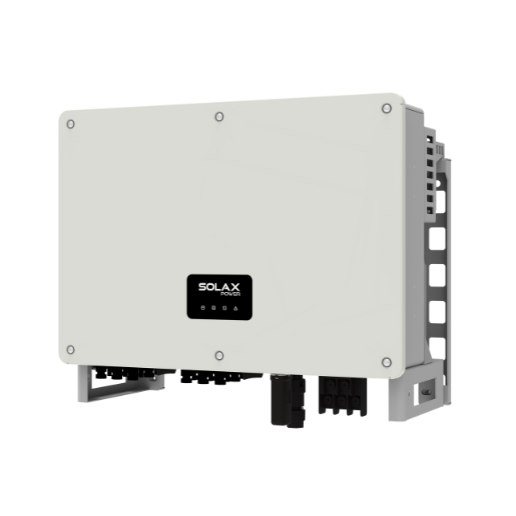

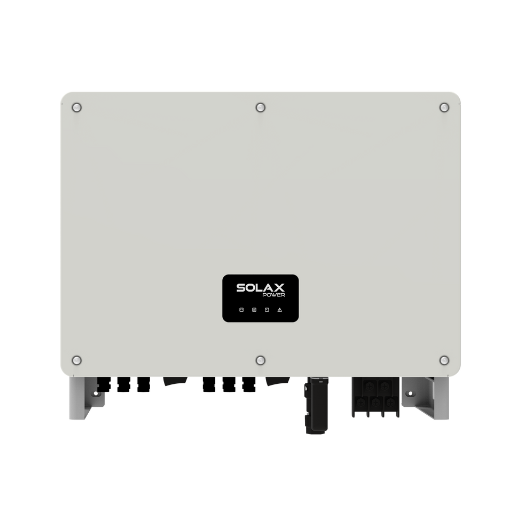

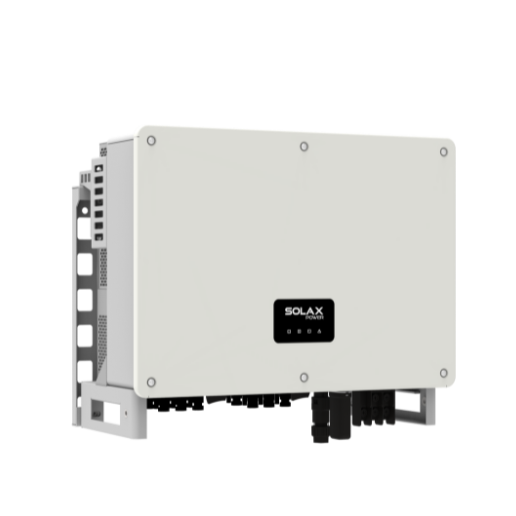

Three Phase Inverter

X3-MEGA G2

40kW / 50kW / 60kW

The X3-MEGA G2 three-phase inverter, available in 40kW, 50kW, and 60kW models. With up to 6 MPPTs and 2 strings per tracker, it offers flexible system design. Smart air cooling enhances fan longevity, while optimized heat dissipation reduces weight and size by over 10%.

Watch Video
Data Download

Product Advantage

Delivering up to 98% efficiency, the X3-MEGA G2 supports 150% PV oversizing and 110% AC overloading. A wide MPPT voltage range of 180–1000Vdc and 32A per tracker maximize solar energy yield. Advanced I-V curve diagnostics and night-time reactive power compensation further enhance system performance and grid stability, making it ideal for high-output solar installations.

Flexible Adaptability

Built-in export power control
Remote setting and upgrading
Aluminium AC cable connection available
Max. 6 MPPTs, 2 strings per MPP tracker

High Efficiency

Up to 98.4% efficiency
32A per MPP tracker
180~1000Vdc MPPT voltage range
150% PV oversizing, 110% overloading output

Assured Safety

IP66 protection
Type II SPD on AC&DC side (Optional)
Smart string current monitoring
24 hours operation monitoring

Intelligent Design

Night-time reactive power compensation
Smart air cooling enhances fan longevity
Heat dissipation reduces system weight & size by over 10%
I-V Curve diagnosis

Product Parameters

X3-MGA-60K-G2
X3-MGA-50K-G2
X3-MGA-40K-G2

X3-MGA-60K-G2
- PV INPUT

  Max. recommended PV array power 90 kWp
  MPPT voltage range 180 ~ 1000 V
  No. of MPP trackers / strings per MPP tracker 6 / 2
  Max. input current per MPPT 32 A
- AC OUTPUT

  Rated output power 60 kW
  Nominal AC voltage
  3 / (N) / PE, 220 / 380 V
  3 / (N) / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  630 × 521 × 286 mm
  Net Weight 45.5 kg
X3-MGA-50K-G2
- PV INPUT

  Max. recommended PV array power 75 kWp
  MPPT voltage range 180 ~ 1000 V
  No. of MPP trackers / strings per MPP tracker 5 / 2
  Max. input current per MPPT 32 A
- AC OUTPUT

  Rated output power 50 kW
  Nominal AC voltage
  3 / (N) / PE, 220 / 380 V
  3 / (N) / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  630 × 521 × 286 mm
  Net Weight 44.5 kg
X3-MGA-40K-G2
- PV INPUT

  Max. recommended PV array power 60 kWp
  MPPT voltage range 180 ~ 1000 V
  No. of MPP trackers / strings per MPP tracker 4 / 2
  Max. input current per MPPT 32 A
- AC OUTPUT

  Rated output power 40 kW
  Nominal AC voltage
  3 / (N) / PE, 220 / 380 V
  3 / (N) / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  630 × 521 × 286 mm
  Net Weight 44.0 kg
