Single Phase Inverter

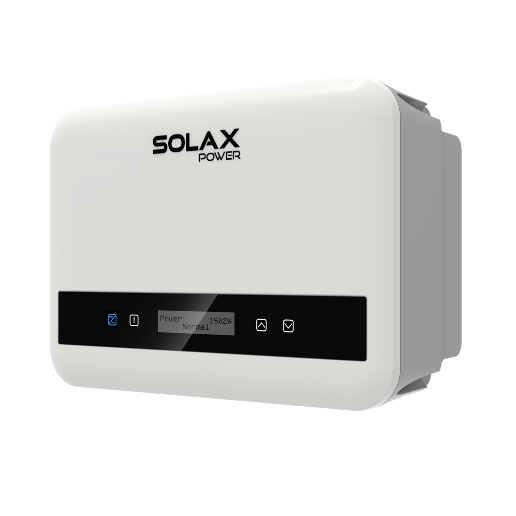

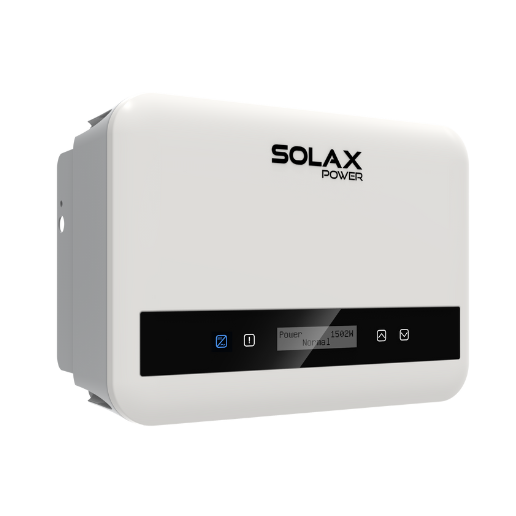

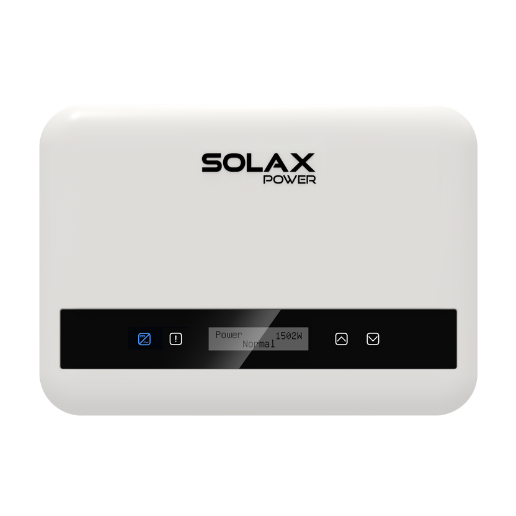

X1-MINI G4

  • 0.6kW / 0.7kW / 0.8kW / 1.1kW / 1.5kW / 2kW / 2.5kW / 3kW / 3.3kW

The X1-MINI G4 features ultra-compact size—smaller than an A4 paper—makes it ideal for balcony installations and tight spaces. With built-in support for parallel operation and smart loads management, it's engineered for seamless integration and easy scalability.


Product Advantage

Unlock up to 200% PV oversizing and 16A input with the X1-MINI G4, built to support high-power panels and global MPP tracking. Its ultra-wide MPPT range and shade optimization ensure peak energy yield in any condition.

Contact Us

Intelligent Design

  • 10s data refresh on SolaXCloud

  • I-V curve diagnosis


Flexible Adaptability

  • Supports parallel operation for up to 5 inverters, no external EMS required

  • Smart loads management (e.g., heat pump, smart EV charger)


High Efficiency

  • 200% PV oversizing and 16A input to support

  • High-power panels

  • Ultra-Wide MPPT voltage range

  • Global MPP tracking with shade optimization

Assured Safety

  • Type II SPD on AC&DC side

  • Ready for Rapid Shutdown function

  • AFCI support (optional)

  • Built-in export control function


Product Parameters

  • X1-MINI-0.6K-G4
  • X1-MINI-0.7K-G4
  • X1-MINI-0.8K-G4
  • X1-MINI-1.1K-G4
  • X1-MINI-1.5K-G4
  • X1-MINI-2.0K-G4
  • X1-MINI-2.5K-G4
  • X1-MINI-3.0K-G4
  • X1-MINI-3.3K-G4
  • X1-MINI-0.6K-G4
    • PV INPUT
      Max. recommended PV array power1.2 kWp
      MPPT voltage range40 ~ 450 V
      No. of MPP trackers / strings per MPP tracker1 / 1
      Max. input current per MPPT16 A



    • AC OUTPUT
      Rated output power600 W
      Rated AC voltage

      1 / N / PE, 220 / 230 / 240 V


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      290 × 206 × 120 mm

      Net Weight5.2 kg


  • X1-MINI-0.7K-G4
    • PV INPUT
      Max. recommended PV array power1.4 kWp
      MPPT voltage range40 ~ 450 V
      No. of MPP trackers / strings per MPP tracker1 / 1
      Max. input current per MPPT16 A



    • AC OUTPUT
      Rated output power700 W
      Rated AC voltage

      1 / N / PE, 220 / 230 / 240 V


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      290 × 206 × 120 mm

      Net Weight5.2 kg


  • X1-MINI-0.8K-G4
    • PV INPUT
      Max. recommended PV array power1.6 kWp
      MPPT voltage range40 ~ 450 V
      No. of MPP trackers / strings per MPP tracker1 / 1
      Max. input current per MPPT16 A


    • AC OUTPUT
      Rated output power800 W
      Rated AC voltage

      1 / N / PE, 220 / 230 / 240 V



    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      290 × 206 × 120 mm

      Net Weight5.2 kg


  • X1-MINI-1.1K-G4
    • PV INPUT
      Max. recommended PV array power2.2 kWp
      MPPT voltage range40 ~ 450 V
      No. of MPP trackers / strings per MPP tracker1 / 1
      Max. input current per MPPT16 A


    • AC OUTPUT
      Rated output power1100 W
      Rated AC voltage

      1 / N / PE, 220 / 230 / 240 V


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      290 × 206 × 120 mm

      Net Weight5.2 kg


  • X1-MINI-1.5K-G4
    • PV INPUT
      Max. recommended PV array power3 kWp
      MPPT voltage range40 ~ 450 V
      No. of MPP trackers / strings per MPP tracker1 / 1
      Max. input current per MPPT16 A


    • AC OUTPUT
      Rated output power1500 W
      Rated AC voltage

      1 / N / PE, 220 / 230 / 240 V


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      290 × 206 × 120 mm

      Net Weight5.2 kg


  • X1-MINI-2.0K-G4
    • PV INPUT
      Max. recommended PV array power4 kWp
      MPPT voltage range40 ~ 450 V
      No. of MPP trackers / strings per MPP tracker1 / 1
      Max. input current per MPPT16 A



    • AC OUTPUT
      Rated output power2000 W
      Rated AC voltage

      1 / N / PE, 220 / 230 / 240 V






    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      290 × 206 × 120 mm

      Net Weight5.2 kg



  • X1-MINI-2.5K-G4
    • PV INPUT
      Max. recommended PV array power5 kWp
      MPPT voltage range40 ~ 550 V
      No. of MPP trackers / strings per MPP tracker1 / 1
      Max. input current per MPPT16 A



    • AC OUTPUT
      Rated output power3000 W
      Rated AC voltage

      1 / N / PE, 220 / 230 / 240 V






    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      290 × 206 × 120 mm

      Net Weight5.5 kg



  • X1-MINI-3.0K-G4
    • PV INPUT
      Max. recommended PV array power6 kWp
      MPPT voltage range40 ~ 550 V
      No. of MPP trackers / strings per MPP tracker1 / 1
      Max. input current per MPPT16 A


    • AC OUTPUT
      Rated output power3000 W
      Rated AC voltage

      1 / N / PE, 220 / 230 / 240 V


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      290 × 206 × 120 mm

      Net Weight5.5 kg


  • X1-MINI-3.3K-G4
    • PV INPUT
      Max. recommended PV array power6.6 kWp
      MPPT voltage range40 ~ 550 V
      No. of MPP trackers / strings per MPP tracker1 / 1
      Max. input current per MPPT16 A


    • AC OUTPUT
      Rated output power3300 W
      Rated AC voltage

      1 / N / PE, 220 / 230 / 240 V


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)

      290 × 206 × 120 mm

      Net Weight5.5 kg


Data Download

  • Datasheet
  • User Manual
  • Quick Installation Guide
