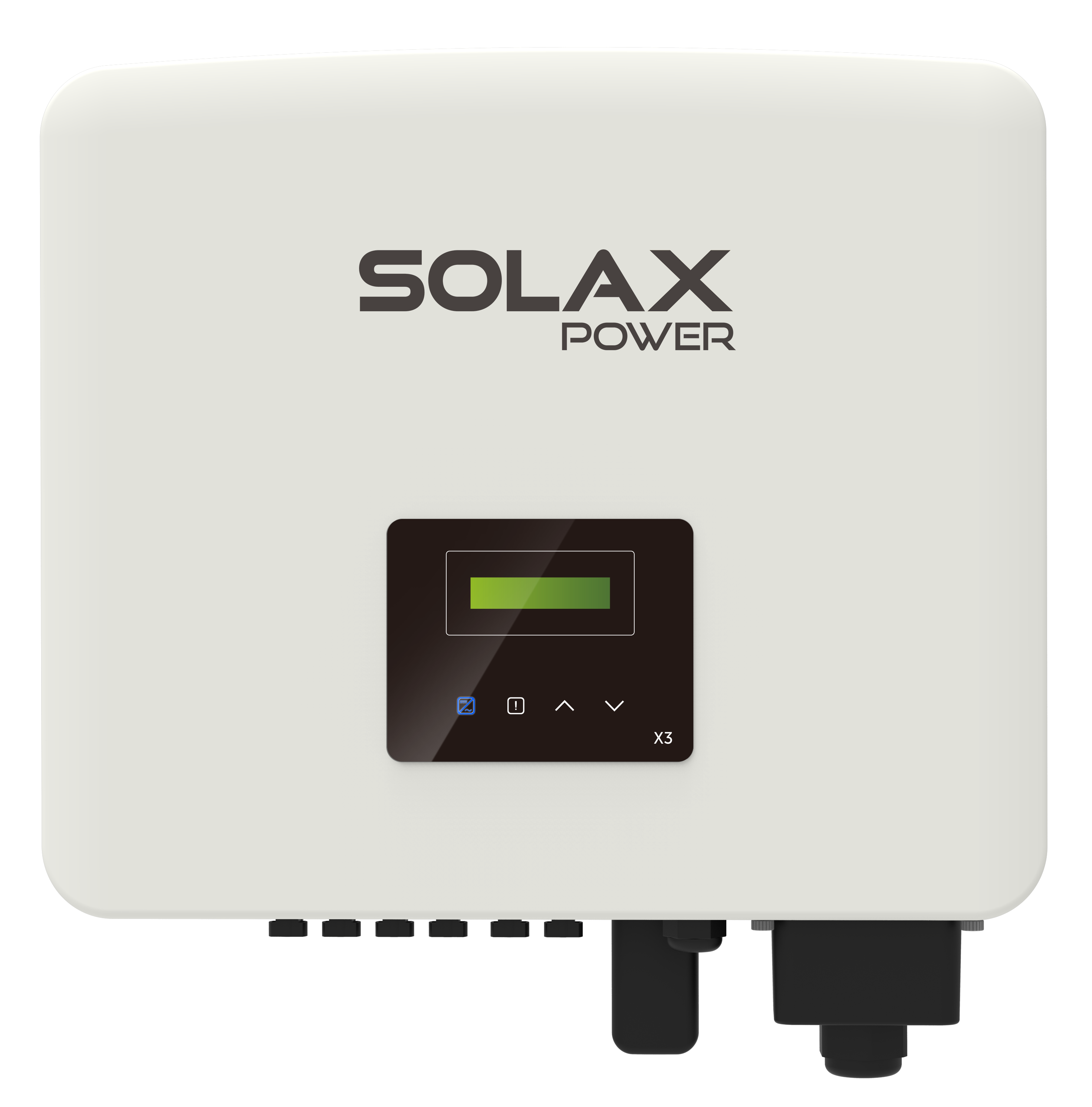

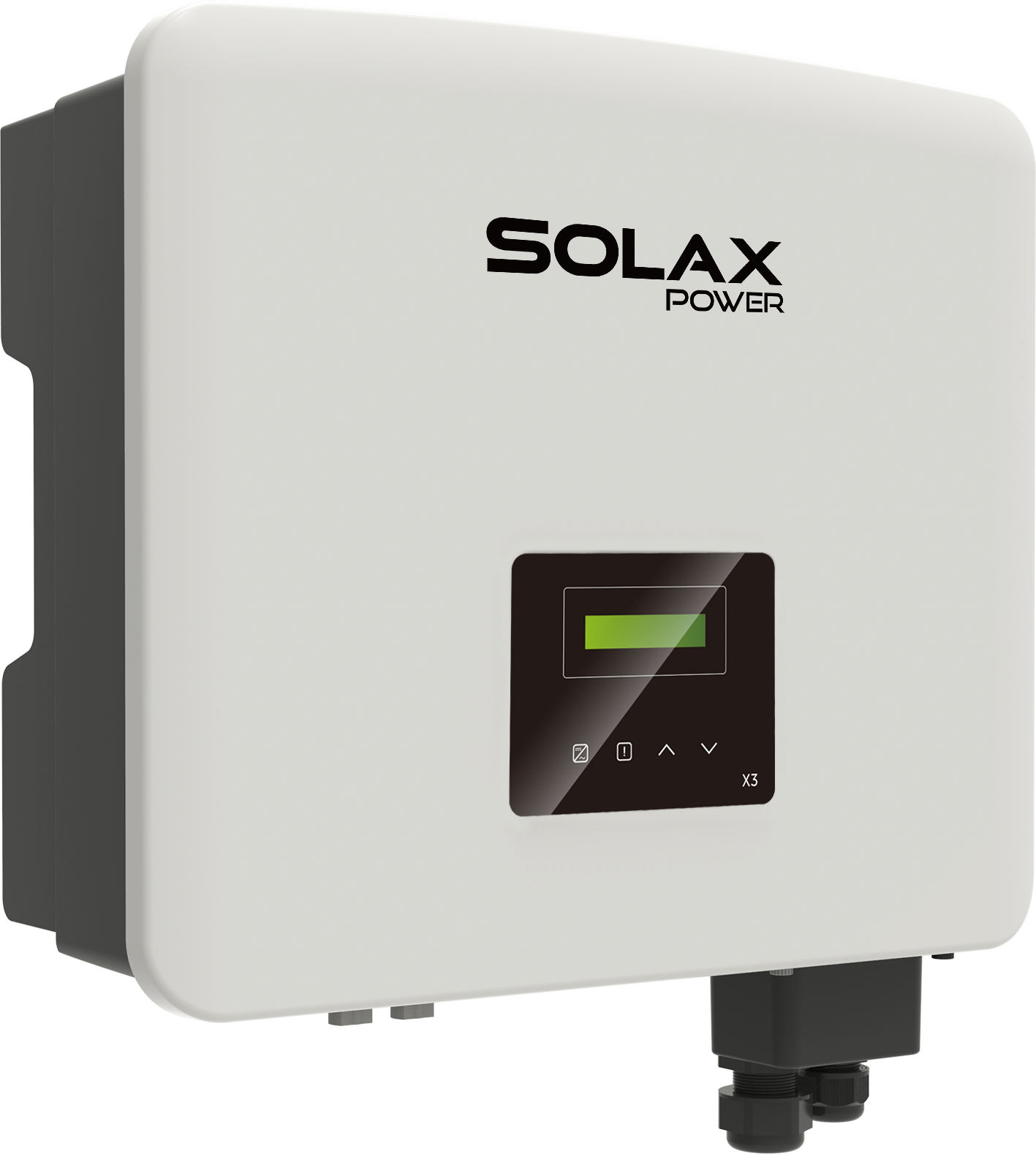

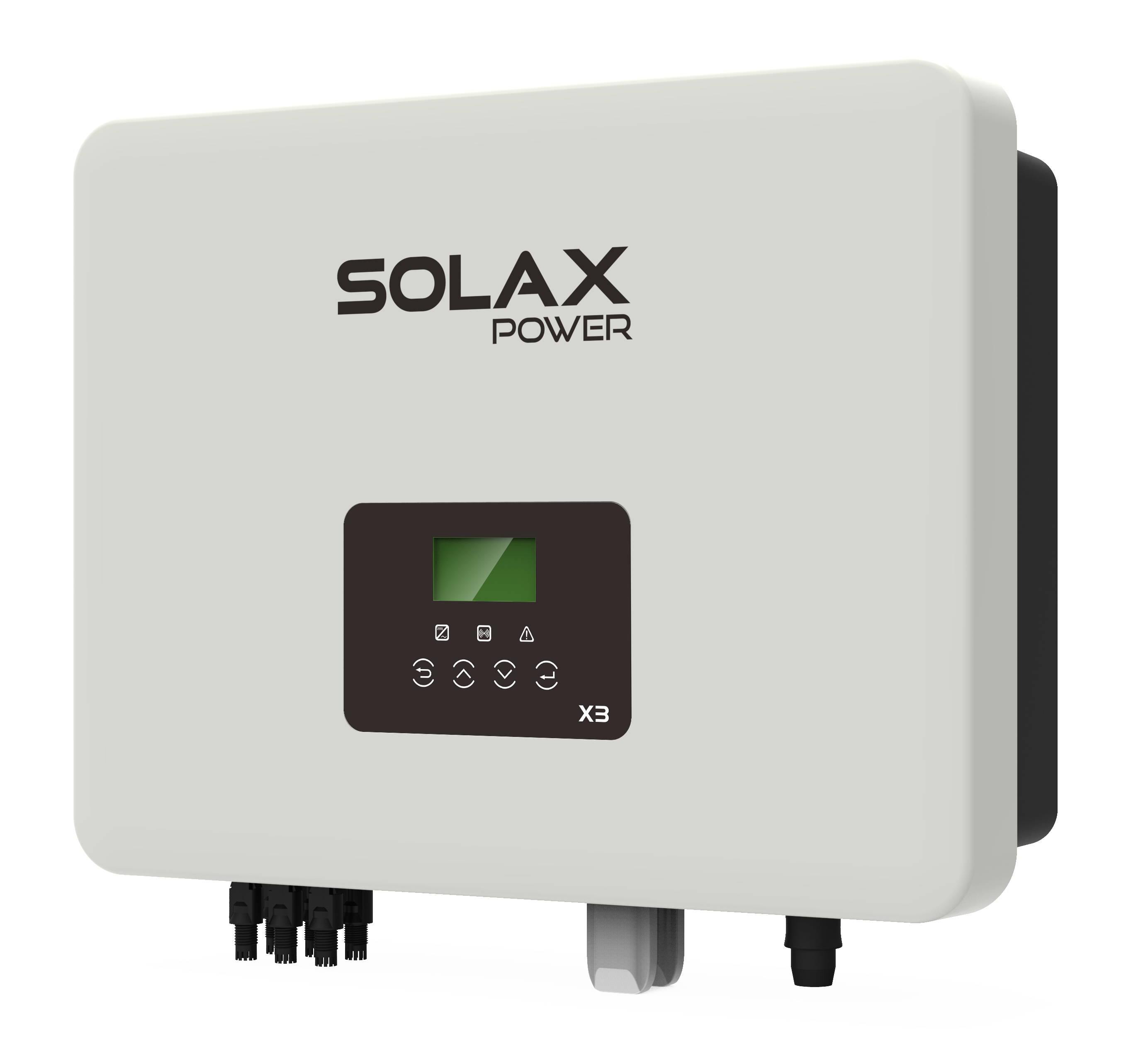

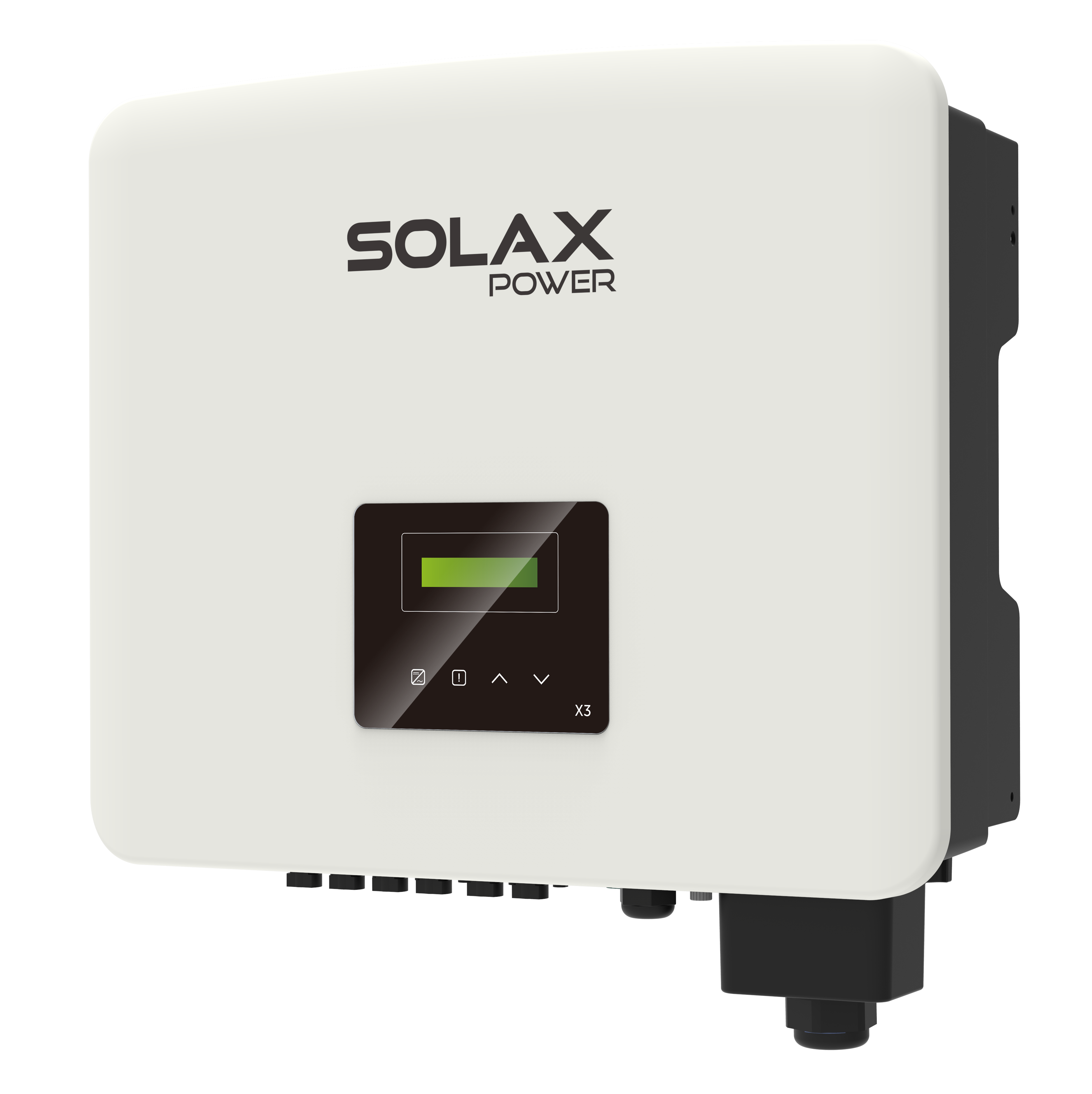

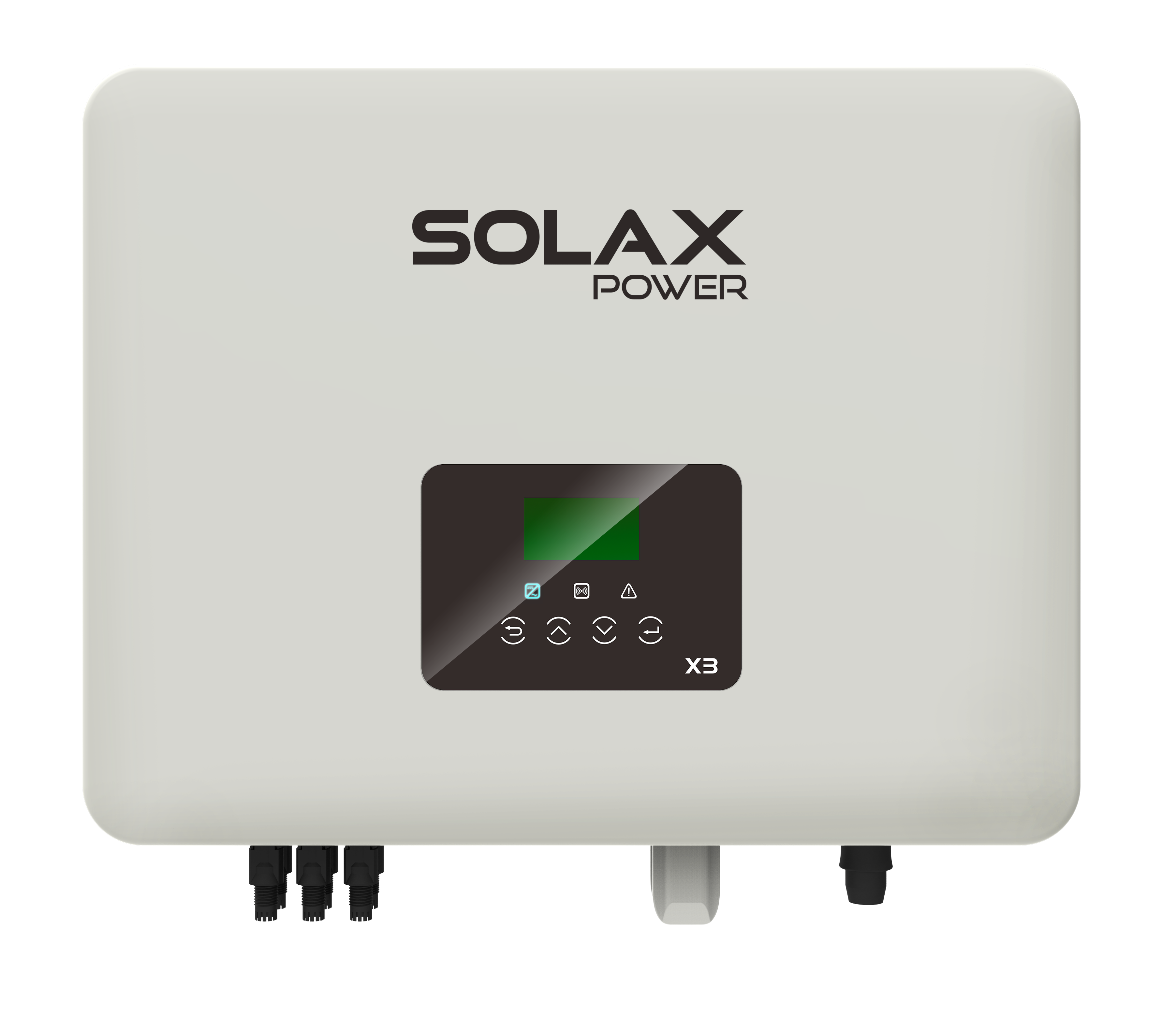

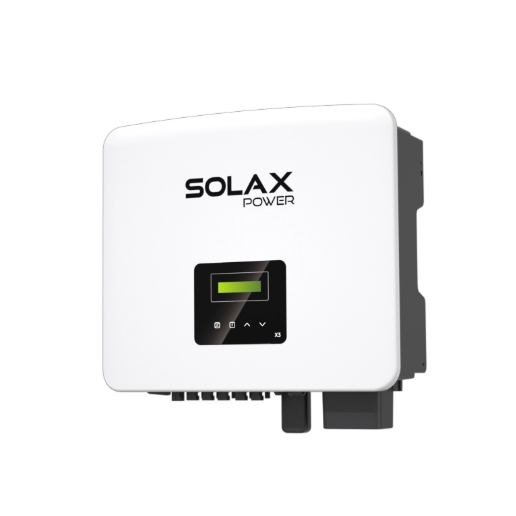

Three Phase Inverter

X3 PRO G2

G2

8kW / 10kW / 12kW / 15kW

17kW / 20kW / 25kW / 30kW

High-efficiency


  • Maximum efficiency is up to 98.5%

  • Low startup voltage, ultrawide MPPT voltage range

  • 150% DC oversizing, 110% AC overloading output

  • In-built global MPP scan for higher yield efficiency

Safe


  • SPD type II protection on both AC&DC

  • ARC protection (Optional)

  • IP66 protection

Smart


  • Built-in export power control

  • Intelligent load management - heat pump (Adapter Box required)

  • 24h monitoring and maintenance (Optional)

  • Multiple monitoring methods supported, Optional: WiFi/LAN/4G

Economic


  • Ultra-high power density

  • Maximum 32A DC input current per MPP tracker, support high power solar panels

  • Up to 3 MPPTs, 2 strings per MPPT

  • Support Master/Slave parallel function

Why X3 PRO G2

Experience the power of the X3-PRO G2 solar inverter, delivering high efficiency, safety, and smart features. With built-in export power control and intelligent load management for heat pumps, optimize your energy usage effortlessly. Take advantage of its compatibility with high-power solar panels, maximizing energy generation. Choose optional 24-hour monitoring and maintenance for continuous performance. Unleash the potential of your solar system with the X3-PRO G2.

8-12kW
15-20kW
25-30kW
Max. PV input voltage1100V
Max. PV input current32A/32A
No. of MPP trackers/Strings per MPP tracker2/2
Operating ambient temperature range-30~+60°C
Dimensions (W*H*D)482*417*181mm
Net weight24.5kg


Max. PV input voltage1100V
Max. PV input current32A/32A
No. of MPP trackers/Strings per MPP tracker2/2
Operating ambient temperature range-30~+60°C
Dimensions (W*H*D)482*417*181mm
Net weight26kg


Max. PV input voltage1100V
Max. PV input current32A/32A/32A
No. of MPP trackers/Strings per MPP tracker3/2
Operating ambient temperature range-30~+60°C
Dimensions (W*H*D)482*417*181mm
Net weight28kg


X3 PRO G2
