ESS Accessories

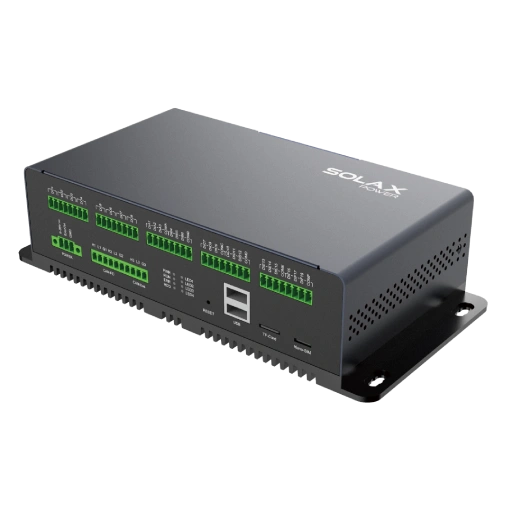

LC100

Scalable Energy Storage Management

The LC100 is engineered for scalability and seamless integration within the ORI Series Battery Energy Storage System. Its design features a built-in Web-based HMI, enabling comprehensive local visualization and standalone on-site monitoring without the need for external hardware.

Data Download

With millisecond-level active power response, the LC100 delivers precise power regulation for 7.5 MW/30 MWh energy storage projects. The LC100 simplifies commissioning through one-click configuration that automatically scans connected devices and assigns addresses.

Flexible Compatibility & Scalable Expansion

Supports up to 36 PCS units per controller, suitable for 7.5 MW / 30MWh energy storage systems, with flexible capacity expansion to meet future project requirements.
Features a built-in Web-based HMI, enabling local visualization, comprehensive data storage, and standalone on-site monitoring.
Compatible with a wide range of industry-standard communication protocols, allowing seamless integration with third-party EMS platforms.

Efficient Control with High Precision

Automatically scans connected devices and assigns communication addresses with one-click configuration, significantly simplifying commissioning and future system expansion.
Delivers millisecond-level active power response, ensuring precise and reliable power regulation.
Supports automatic cell balancing and equalization charging, dynamically balancing energy among battery clusters to maximize available storage capacity.

Reliable Operation, Intelligent O&M

Supports batch parameter configuration and centralized firmware upgrades for multiple devices.
Provides real-time alarm notifications, comprehensive operation logs, and full lifecycle device traceability, reducing O&M complexity and downtime.
Enables instant access to a remote AI-powered O&M platform via QR code for intelligent remote monitoring, diagnostics, and predictive maintenance.

Product Parameters

LC100

LC100
- COMMUNICATION

  Max Connectable Devices
  36
  Protocol
  Modbus TCP, IEC104, IEC61850, GOOSE
- POWER SUPPLY

  DC Input Voltage
  DC 12 ~ 24 V
  DC Input Current
  0.65 A avg(1.17 A peak)
  Power Consumption
  15 W avg(25 W peak)
- GENERAL

  Dimensions(W × H × D)
  232 × 113.2 × 59 mm
  Weight
  1400 g
