Monitoring Device

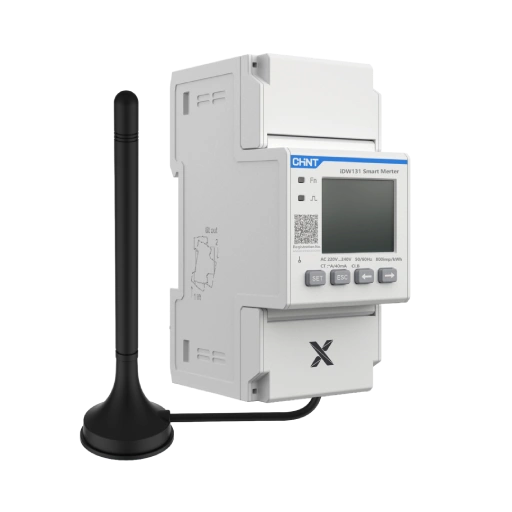

iDW 131
-
Single phase wireless smart meter (2.5P)
The iDW 131 Single Phase Wireless Smart Meter is designed for intuitive operation. Its clear LCD, convenient keypad, and quick-connect CT simplify setup while providing easy access to essential energy data.
Product Advantage
The iDW 131 supports forward and reverse active energy metering while measuring voltage, current, frequency, power and power factor. A power refresh rate of up to 50 ms, automatic CT polarity correction and export control for X1-Micro G2 and X1-Micro 4 in 1 G2.
Metering & Measurement
Forward and reverse active energy metering.
Measurement of voltage, current, frequency, power and power factor.
User Interface
LCD display with keypad operation
Smart Functions
Supports remote configuration via SolaXCloud.
Supports export control for X1-Micro 2 in 1 G2 and X1-Micro 4 in 1 G2.
Automatic CT polarity correction.
Easy Installation & Fast Response
Active power refresh rate up to 50 ms.
Quick-connect CT for easy installation.
Product Parameters
-
iDW 131-
Electrical parameters
Voltage rated value
220V...240V
Current input method
CT connection
Specified working voltage range
207V ~ 253V
-
Environment
Working temperature range
-25℃ ~ +55℃
Extended working temperature range
-40℃ ~ +70℃
Atmosphere
86kPa ~ 106kPa
-
Specification
Dimension
45mm×100mm×65.5mm(allowance±1)
Mounting type
DIN35mm(standard DIN-Rail mount)
-
Data Download
-
Datasheet
-
File nameLanguageFormatSizeLast updateddownload
