Residential Batteries

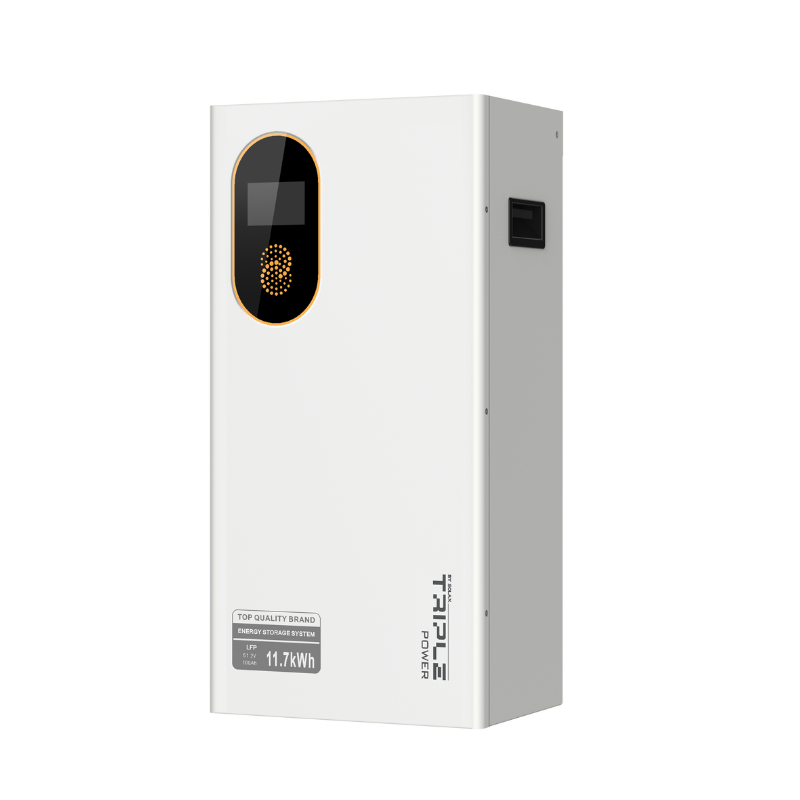

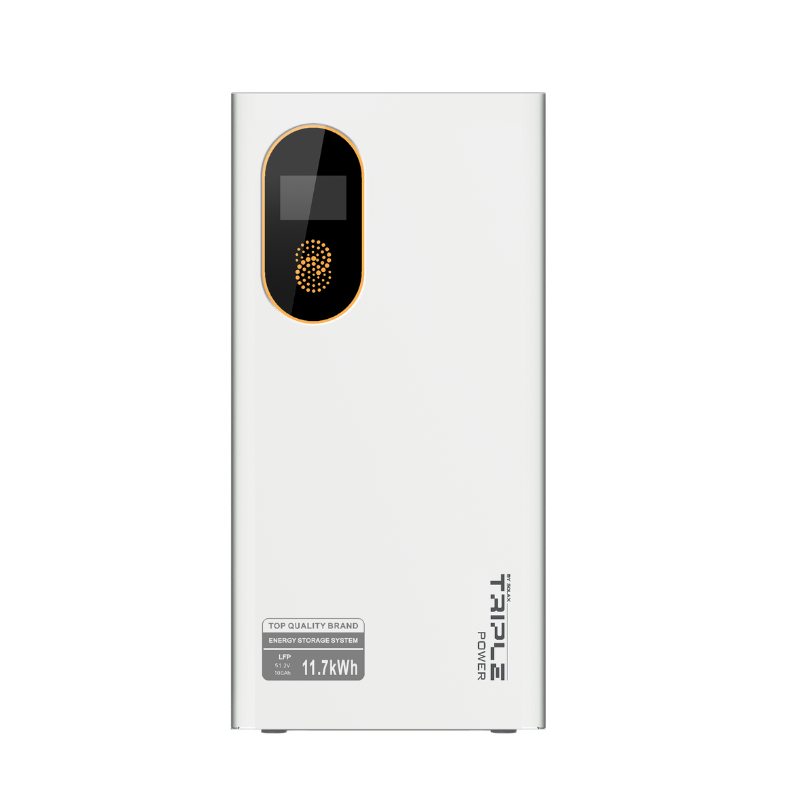

TSYS-LD117

  • 11.7 kWh

This energy storage system offers a comprehensive solution with a wide capacity range of 11.7 to 187.2 kWh and high charge/discharge currents of up to 250 A. It is engineered for longevity, supporting over 6000 cycles, and features smart management capabilities including remote diagnostics and an intuitive LCD touchscreen. The system ensures reliability through its IP40 protection, robust LFP battery cells, and integrated aerosol fire suppression. Additionally, it provides flexible scalability by supporting parallel expansion of up to 16 units and utilizes a compact CTP design to optimize space and energy density.

Product Advantage

Distinguished by its high performance and extended cycle life, this system delivers superior reliability and adaptability. It enables significant expansion potential and maximizes energy efficiency through advanced CTP technology. User-friendly smart management—including remote maintenance and a wide operating temperature range—ensures effortless operation, while built-in safety features such as fire suppression and high-grade protection offer peace of mind for diverse applications.

Contact Us

High Performance

  • 11.7 ~ 187.2 kWh wide capacity range

  • Max. 230 A / 250 A charge / discharge current

  • Cycle life > 6000 cycles

Smart Management

  • Remote fault diagnosis, upgrade and maintenance

  • Wide temperature tolerance

  • User-friendly LCD touchscreen for intuitive and easy interaction

Assured Reliability

  • IP40 ingress protection

  • LFP battery cell & high-performance processors

  • Aerosol fire suppression for precise protection

Flexible Adaptability

  • Expandable to 16 units in parallel

  • CTP (Cell-to-Pack) design maximizes space and  energy density for superior performance

Product Parameters

  • TSYS-LD117
  • TSYS-LD117
    • GENERAL INFORMATION
      Battery type
      		LFP
      Scalability
      		Max. 16 pcs in parallel
      Nominal energy
      		11.7 kWh
      Rated power
      		5.8 kW
      Max. charge / discharge current
      		230 A / 250 A
      Depth of discharge
      		95%
      Dimensions (W x H x D)
      		355 x 726 x 263 mm
      Net weight
      		88 kg


    • ENVIRONMENTAL REQUIREMENTS
      Cooling concept
      		Natural cooling
      Max. operating altitude
      		3000 m
      Installation type
      		Wall mounting / floor mounting
      Ingress protection
      		IP40
