Residential Batteries

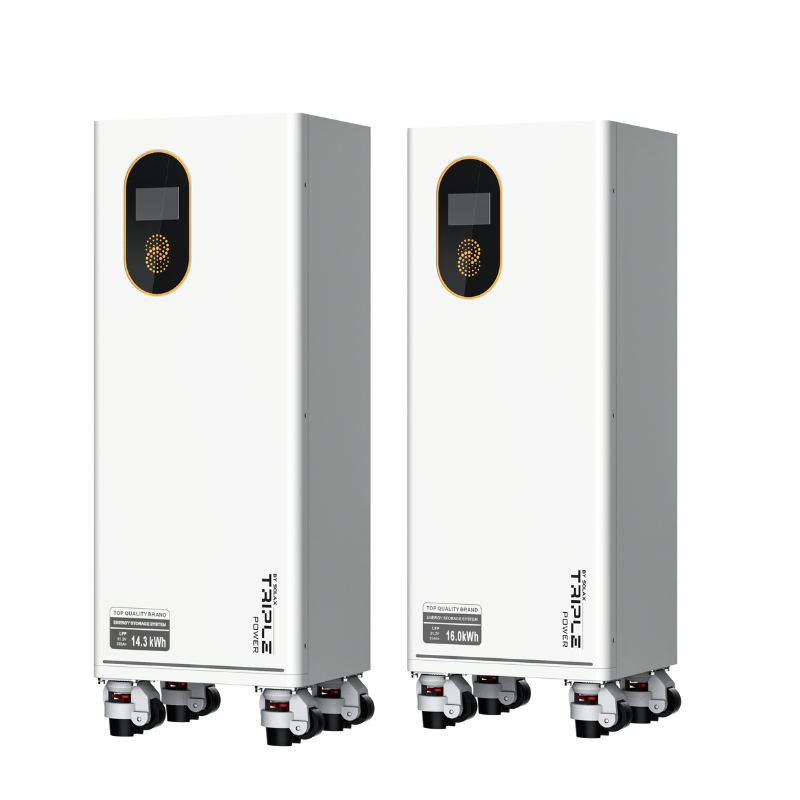

TSYS-LD160+TSYS-LD143

  • 14.3kWh / 16.0kWh

This high-performance energy storage system delivers a wide capacity range of up to 256 kWh (LD160) and a maximum discharge current of 220A, supported by a cycle life of over 8,000 cycles. It ensures assured reliability with its LFP battery cells, IP40 protection, and integrated aerosol fire suppression system. The unit also features smart remote management and a flexible, expandable design with CTP technology for superior energy density and easier installation.

Product Advantage

Designed for smart and user-friendly operation, this system allows for remote monitoring, diagnostics, and upgrades, complemented by an intuitive LCD touchscreen. It offers exceptional flexibility, supporting expansion up to 16 units in parallel and featuring a pulley system for convenient installation. Beyond its adaptability, it doesn’t compromise on performance or safety, providing high capacity, long cycle life, LFP cells, and precision fire protection.

Contact Us

Assured Reliability

  • IP40 ingress protection

  • LFP battery cell & high-performance processors

  • Aerosol fire suppression for precise protection

Smart Management

  • Remote fault diagnosis, upgrade and maintenance

  • Wide temperature tolerance

  • User-friendly LCD touchscreen for intuitive and easy  interaction

High Performance

  • 16 ~ 256 kWh (LD160) / 14.3 ~ 229.3 kWh (LD143) wide  capacity range

  • Max. 155 A / 220 A (LD160), 140 A / 225 A ( LD143)  charge / discharge current

  • Cycle life > 8000 cycles

Flexible Adaptability

  • Expandable to 16 units in parallel

  • CTP (Cell-to-Pack) design maximizes space and energy density for superior performance

  • Pulley design enables more convenient installation

Product Parameters

  • TSYS-LD143
  • TSYS-LD160
  • TSYS-LD143
    • GENERAL INFORMATION
      Battery type
      		LFP
      Scalability
      		Max. 16 pcs in parallel
      Nominal energy
      		14.3 kWh
      Rated power
      		7.1 kW
      Max. charge / discharge current
      		140 A / 225 A
      Depth of discharge
      		95%
      Dimensions (W x H x D)
      		356 x 953 x 289mm
      Net weight
      		115.5 kg


    • ENVIRONMENTAL REQUIREMENTS
      Cooling concept
      		Natural cooling
      Max. operating altitude
      		3000 m
      Installation type
      		Floor mounting
      Ingress protection
      		IP40


  • TSYS-LD160
    • GENERAL INFORMATION
      Battery type
      		LFP
      Scalability
      		Max. 16 pcs in parallel
      Nominal energy
      		16 kWh
      Rated power
      		7.9 kW
      Max. charge / discharge current
      		155 A / 220 A
      Depth of discharge
      		95%
      Dimensions (W x H x D)
      		356 x 953 x 289mm
      Net weight
      		118.5 kg


    • ENVIRONMENTAL REQUIREMENTS
      Cooling concept
      		Natural cooling
      Max. operating altitude
      		3000 m
      Installation type
      		Floor mounting
      Ingress protection
      		IP40
