Utility ESS

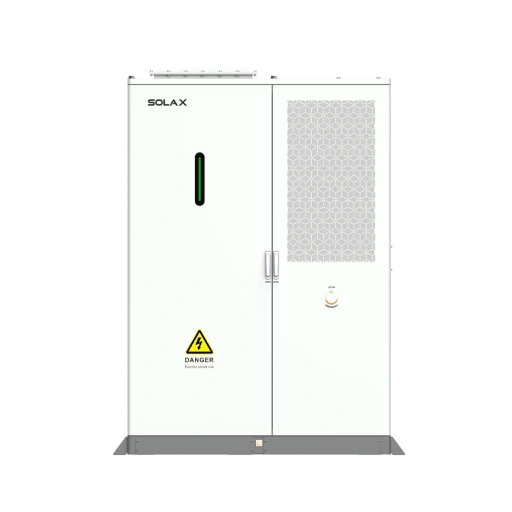

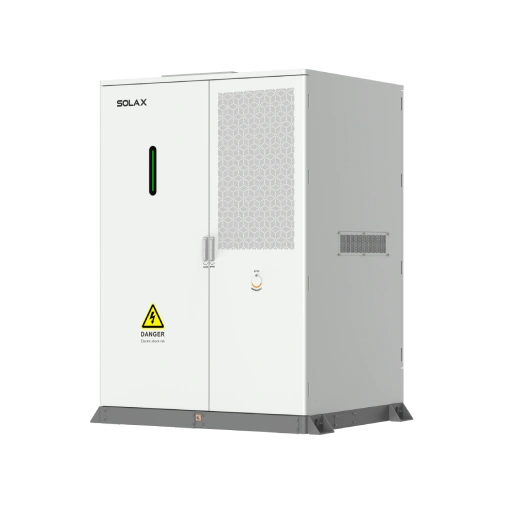

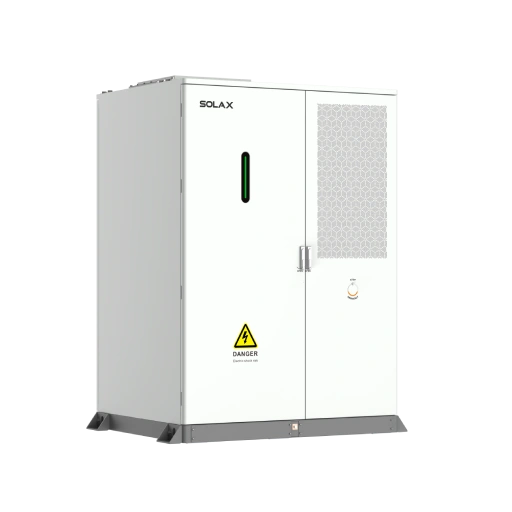

ORI 418kWh

  • 418kWh | Liquid Cooling

The ESS-ORI 215kW/418kWh AC-Coupled ESS Liquid Cooling Cabinet features an all-in-one, factory pre-assembled design for fast, plug-and-play deployment. Its compact side-by-side configuration supports flexible installation and seamless capacity expansion, while the built-in auxiliary transformer minimizes additional wiring and simplifies on-site integration.

Maximize your energy yield with the ESS-ORI’s advanced Stable and Efficient architecture, boasting a Round Trip Efficiency (RTE) of up to 90%. Real-time cell monitoring, multi-level overcurrent protection, and redundant fire safety enhance operational security, while SolaXCloud integration enables intelligent O&M and returns up to 12% higher.

Contact Us

All In One

  • All-in-one design, factory pre-assembled and pre-commissioned

  • Plug-and-play design for fast on-site deployment

  • Side-by-side installation, flexible layout and capacity expansion

  • Built-in auxiliary transformer, no additional wiring required


Assured Safety

  • Real-time cell monitoring, 7-day early short-circuit warning

  • PACK, Cluster, PCS, and AC-side 4-level overcurrent protection

  • Multi-layer redundant fire safety design for ultimate thermal safety


Stable and Efficient

  • Fully self-developed 3S (BMS, EMS & PCS) for seamless & stable operation

  • High-efficiency system with RTE up to 90%

  • Smart liquid cooling & AI-driven BMS extend lifespan by up to 2 years

  • Suitable for 690V AC wind-solar-storage and power plant energy storage applications


Smart O&M

  • Integrated with SolaXCloud, adaptive strategies for up to 12% higher returns

  • Unmanned site management with one-click upgrades to reduce O&M costs


Product Parameters

  • ORI418-2A
  • ORI418-2A
    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power215kW
      Rated AC voltage3P / 3W,690 a.c. V
      AC voltage range586 – 759 a.c. V


    • DC SIDE
      Battery typeLFP / 314 Ah
      Nominal energy418 kWh


    • GENERAL
      Ingress protectionIP55
      Dimensions (W × H × D)1680x2470x1400 mm
      Weight4200 kg
