C&I ESS

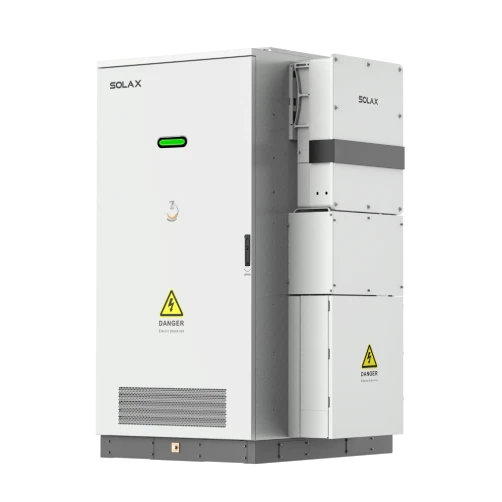

ESS-AELIO 208 kWh
-
50kW/60kW 208kWh
Available in 50kW/208kWh and 60kW/208kWh configurations, the ESS-AELIO liquid cooling ESS cabinet adopts an all-in-one liquid-cooling architecture. It supports up to 10 systems in parallel and multi-cabinet battery expansion, easily scaling to meet 2–8 hour long-duration energy storage demands.
Built on a fully self-developed 3S platform (BMS, EMS & PCS), the ESS-AELIO achieves up to 90% RTE. The smart liquid cooling and AI-driven BMS extends battery lifespan by up to 2 years, while SolaXCloud integration unlocks adaptive dispatch strategies for up to 12% higher returns.
Flexible & Scalable
200% PV oversizing for maximum solar harvest
Supports up to 10 parallel systems
Supports multi-battery cabinet expansion,catering to 2-8 hour long-duration energy storage needs
Assured Safety
Real-time cell monitoring, 7-day early short-circuit warning
PACK, Cluster, PCS, and AC-side 4-level overcurrent protection
Multi-layer redundant fire safety design for ultimate thermal safety
Stable and Efficient
Fully self-developed 3S (BMS, EMS & PCS) for seamless & stable operation
High-efficiency system with RTE up to 90%
Smart liquid cooling & AI-driven BMS extend lifespan by up to 2 years
0ms Seamless Switching*
*Switching cabinet required for >3 units
Smart & Convenient
Integrated with SolaXCloud, adaptive strategies for up to 12% higher returns
Compatible with VPP, FCAS and other grid auxiliary services
Unmanned site management with one-click upgrades to reduce O&M costs
Product Parameters
-
AEL208-4A-
PV INPUT
Max.recommended PV array power
100 kWp
MPPT voltage range
160 ~ 950 d.c. V
No. of MPP trackers / Strings per MPP tracker
5 / ( 2 / 2 / 2 / 2 / 2 )
-
AC INPUT & OUTPUT (ON-GRID)
Rated output power
50 kW
Rated AC voltage
3W / N / PE, 220 / 380 a.c. V
3W / N / PE, 230 / 400 a.c. V
Adjustable power factor range
~1 (0.8 lagging to 0.8 leading)
-
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy
208 kWh
-
GENERAL
Dimensions（with inverter） (W×H×D)
1345 × 2250 × 1350 mm
Dimensions（without inverter） (W×H×D)
1050 × 2250 × 1350 mm
Weight（with inverter）
<2120 kg
Weight（without inverter）
<2015 kg
Ingress protection
IP55
-
-
AEL208-3A
-
PV INPUT
Max.recommended PV array power
120 kWp
MPPT voltage range
160 ~ 950 d.c. V
No. of MPP trackers / Strings per MPP tracker
6 / ( 2 / 2 / 2 / 2 / 2 / 2 )
-
AC INPUT & OUTPUT (ON-GRID)
Rated output power
60 kW
Rated AC voltage
3W / N / PE, 220 / 380 a.c. V
3W / N / PE, 230 / 400 a.c. V
Adjustable power factor range
~1 (0.8 lagging to 0.8 leading)
-
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy
208 kWh
-
GENERAL
Dimensions（with inverter） (W×H×D)
1345 × 2250 × 1350 mm
Dimensions（without inverter） (W×H×D)
1050 × 2250 × 1350 mm
Weight（with inverter）
<2120 kg
Weight（without inverter）
<2015 kg
Ingress protection
IP55
-
Data Download
-
Datasheet
-
